Dell Inspiron 1428 Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1428 Memory Modules Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

In this guide, we will show you how to remove and replace the Memory Modules.

  1. MAJFFA6CniOV1mDg

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the procedures in "Before You Begin".

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Remove the screw that secures the memory-module cover to the computer base.

  2. CysFxeQNW1oS6iKV

    • Lift and slide the memory-module cover off the computer base.

    • CAUTION: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

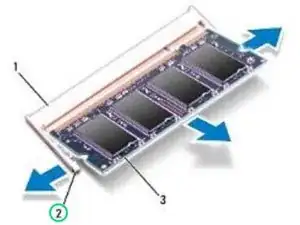

  3. ItFQBoF25O15qjO2

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory-module connector until the memory module pops up.

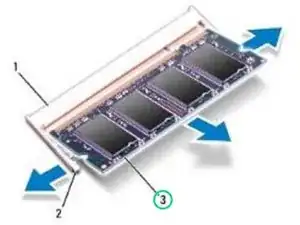

  4. AH2FcGXXMUjbk5XI

    • Remove the memory module from the memory-module connector.

  5. djhfri1nmiZmBXvw

    • Align the notch in the NEW memory module with the tab in the memory module connector.

  6. jl3rQNoHcF4DlQYU

    • Slide the memory module firmly into the slot at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.

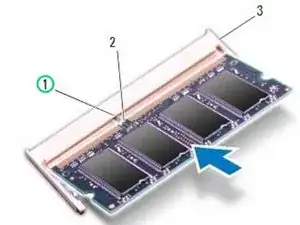

  7. wFyfYpf1YDqKdxsm

    • CAUTION: If the memory module cover is difficult to close, remove the module and reinstall it. Forcing the cover to close may damage your computer.

    • Align the tabs on the memory module cover with the slots on the computer base and place the module cover in position.

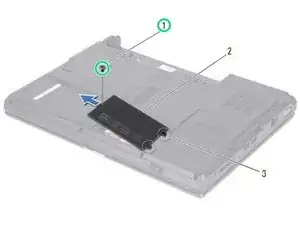

  8. B2ehiCZgRhEDeqIl

    • Replace the screw that secures the memory module cover to the computer base.
