Dell Inspiron 1440 Hard Drive Replacement

Geschrieben von: Terrence15

Kommentare: 1

Dell Inspiron 1440 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

9 - 15 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

Werkzeuge

Phillips #0 Screwdriver

Schritt 1

WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the procedures in Before You Begin.

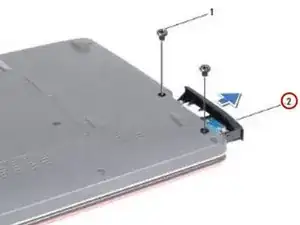

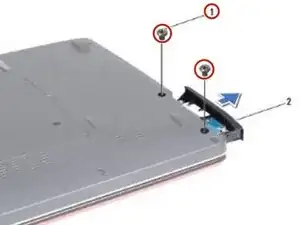

Remove the two screws that secure the hard drive assembly to the computer base.

Schritt 2

Slide the hard drive assembly out of the hard drive compartment.

Schritt 3

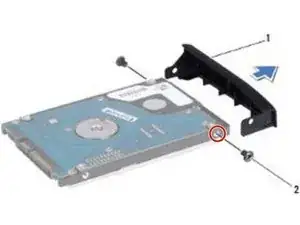

Remove the two screws that secure the hard drive bezel to the hard drive.

Schritt 5

Align the screw holes on the hard drive bezel with the holes on the hard drive.

Schritt 6

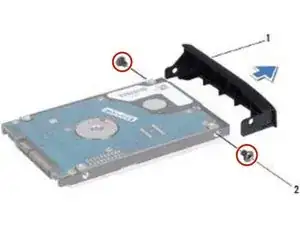

Replace the two screws that secure the hard drive bezel to the hard drive.

Schritt 7

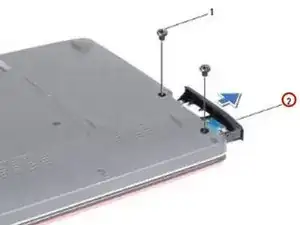

Slide the hard drive assembly into the hard drive compartment until it is fully seated.

Schritt 8

Replace the two screws that secure the hard drive assembly to the computer base.
