Dell Inspiron 1440 Memory Module Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1440 Memory Module Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

2 - 10 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Memory Module.

  1. j2MjF1JG4qcF3yUr
    j2MjF1JG4qcF3yUr
    kZIYFQZXKsxNDCrp

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the procedures in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on the back of the computer).

    • CAUTION: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

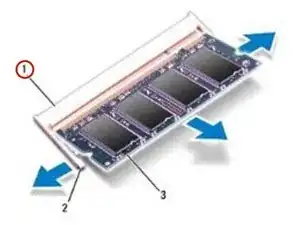

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the module pops up.

  2. JedZdnp3oR1VOIyt

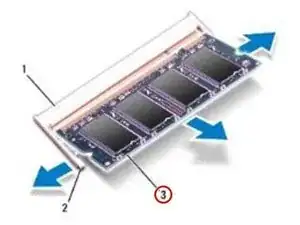

    • Remove the memory module from the memory module connector.

  3. WhOgvgFwSiOSHn3n
    WhOgvgFwSiOSHn3n
    XMUFTwjLkw25PVAw

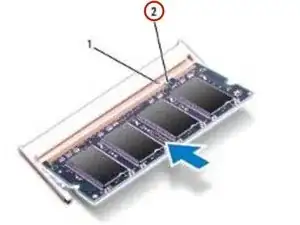

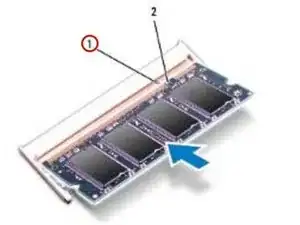

    • Align the notch in the memory module with the tab in the memory module connector.

  4. fse2G6DR5bAQfRVW

    • Slide the memory module firmly into the slot at a 45 - degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.
