Dell Inspiron 1464 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1464 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

2 - 9 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. FtrGjfSQ6WFpfWC3

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the procedures in Before You Begin.

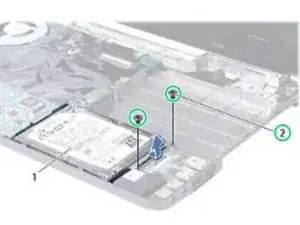

    • Remove the two screws that secure the hard drive assembly to the computer base.

  2. FoxTdhdGHLrnlDbQ

    • Slide the hard drive assembly to the right to disconnect it from the connector on the system board, then lift the hard drive assembly out of the computer base.

  3. FXRuRRHJVXfZfn5e

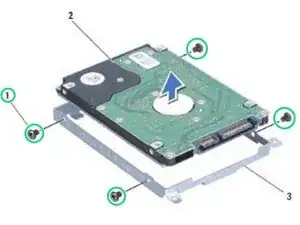

    • Remove the four screws that secure the hard drive to the hard drive bracket.

  4. DZGWWlXyOscpAvTG

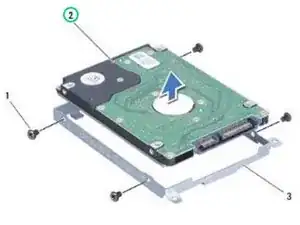

    • Lift the hard drive out of the hard drive bracket.

  5. utMITMUnT3Li3Ber

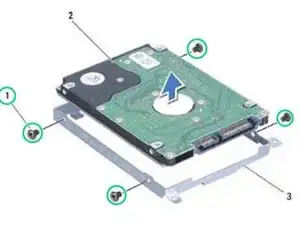

    • Replace the four screws that secure the hard drive bracket to the hard drive.

  6. d4uMCIc6fUbEpPil

    • Place the hard drive assembly in the computer base and push to connect the hard drive assembly to the connector on the system board.

  7. wqDl3LJYULaOmtgj

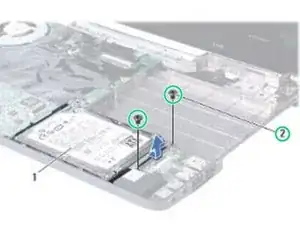

    • Replace the two screws that secure the hard drive assembly to the computer base.
