Dell Inspiron 1464 Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 1464 Memory Modules Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

15 - 45 Sekunden

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

  1. EQaSPYCXjlQAlxpK

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the procedures in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on the back of the computer).

    • CAUTION: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

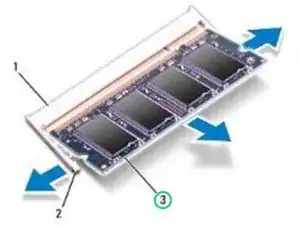

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the memory module pops up.

  2. Sfl2CxVLN3GLWEXK

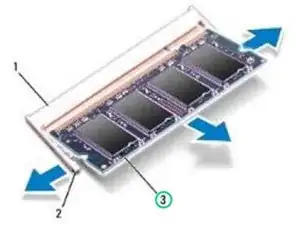

    • Remove the memory module from the memory module connector.

  3. NJiTCpJRqHHtvI1X

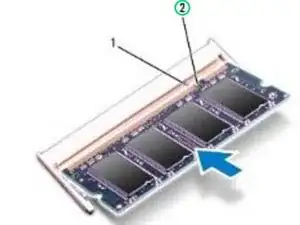

    • Align the notch in the NEW memory module with the tab in the memory module connector.

  4. GfrIye1BDd2KhPwP

    • Slide the memory module firmly into the slot at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.
