Dell Inspiron 14R 5420 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14R 5420 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

5 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. vCfthVnpoQaXsko2

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin".

    • Close the display and turn the computer over.

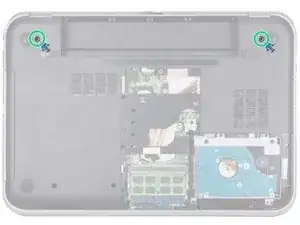

  2. kQ5kfEgZbsLYmslT

    • Remove the screws that secure the display assembly to the computer base.

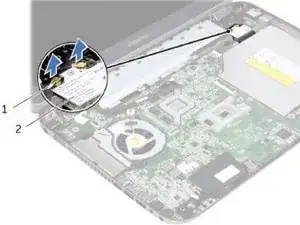

  3. ILDBprV4kVQrGoaB

    • Turn the computer over and open the display as far as possible.

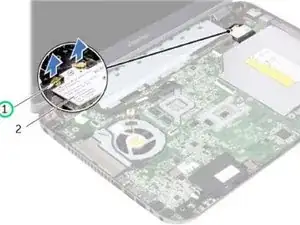

  4. nQjbOZGwUVQAAmDt

    • Disconnect the antenna cables from the connectors on the Mini-Card.

  5. 5MTtgDP3gQfBVbd4

    • Remove the screws that secure the display assembly to the computer base.

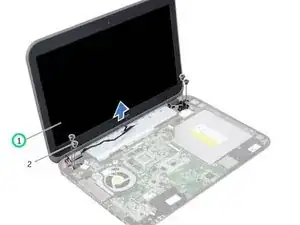

  6. IwqVWyHnudKPYbas

    • Lift the display assembly off the computer base.

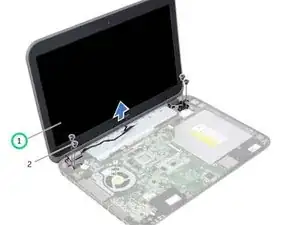

  7. uPBxExcyS1BPJF1V

    • Place the NEW display assembly in position and replace the screws that secure the display assembly to the computer base.

  8. Rhj662waGCKAv1kG

    • Connect the antenna cables to the connectors on the Mini-Card.

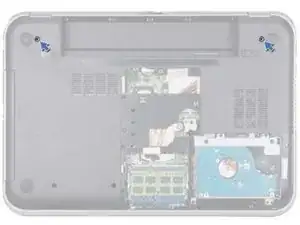

  9. QcNfVTIUCfjnQZiB

    • Close the display and turn the computer over.

  10. nUDBWqKMC13LS3O1

    • Replace the screws that secure the display assembly to the computer base.
