Dell Inspiron 14R 5420 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14R 5420 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

3 - 20 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

  1. UZ3bmEPpikUeGOgA

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin".

    • CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

    • Pull the pull-tab to disconnect the hard-drive cable from the system-board connector.

  2. Keqed4rYZMXVR5YJ

    • Remove the screws that secure the hard-drive assembly to the computer base.

  3. MhRWLQ2I1iIOyAF3

    • Make a note of the hard-drive cable routing and remove the cable from the routing guides.

  4. 3ssX3li2yw1FQfWh

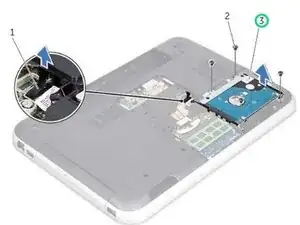

    • Lift the hard-drive assembly along with its cable away from the computer base.

  5. QsF2BRS1rnRAXpV1

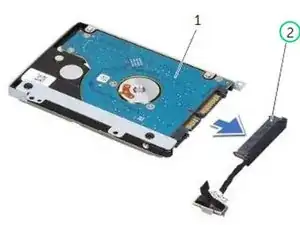

    • Pull the interposer to disconnect the hard-drive cable from the hard-drive.

  6. irrQwMR63ndZoGqr

    • Remove the screws that secure the hard-drive bracket to the hard drive.

  7. yh5mbLlb3R2KwXdt
    yh5mbLlb3R2KwXdt
    5wnVHH1ZPJZLaFmJ

    • Slide the hard-drive off the hard-drive bracket.

  8. ksZtSTRPyPBOlFR5

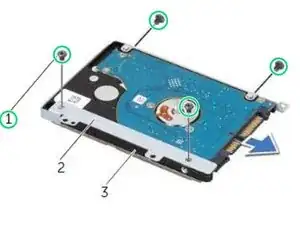

    • Align the screw holes on the hard-drive bracket with the screw holes on the hard drive.

  9. AElOeFhMpPGvHYZW

    • Replace the screws that secure the hard-drive bracket to the NEW hard drive.

  10. OEUlTCS2vTIyLxrB

    • Connect the hard-drive cable interposer to the hard drive.

  11. DhsDyOAm1wfa3uyD

    • Place the hard-drive assembly in the hard-drive bay on the computer base.

  12. oExDCYEcqtmaV4Ru

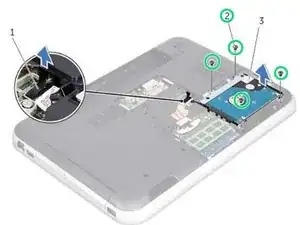

    • Replace the screws that secure the hard-drive assembly to the computer base.

  13. CJGyhTJ2sDlK5OSD

    • Route the hard-drive cable through the routing guides on the computer base.

  14. hmOYjdM6VGRZr1Gs

    • Connect the hard-drive cable to the system-board connector.
