Dell Inspiron 14R Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14R Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

6 - 25 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Display Assembly.

  1. WlO3ZenOrSceYyeo

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in "Before You Begin".

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Remove the two screws from the computer base.

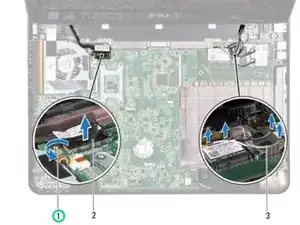

  2. WJiHTWTFXMH5XcZK

    • Loosen the display cable grounding screw.

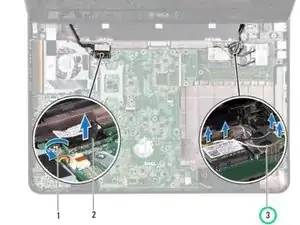

  3. AfZYTUQY4YxylYyH

    • Disconnect the display cable from the connector on the system board.

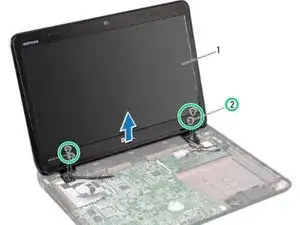

  4. dLcUFTd2iYqaxRRK

    • Remove the four screws that secure the display assembly to the computer base.

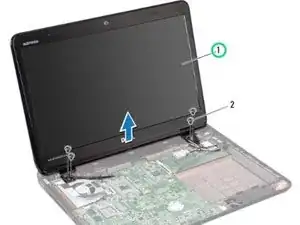

  5. MlCrvx4qXihQlygl

    • Lift the display assembly off the computer base.

  6. EKGxhZYFXGH1wf1H

    • Place the NEW display assembly in position and replace the four screws that secure the display assembly to the computer base.

  7. MKDM1vdCVdvvUhFP

    • Route the display cable and Mini-Card antenna cables through the routing guides.

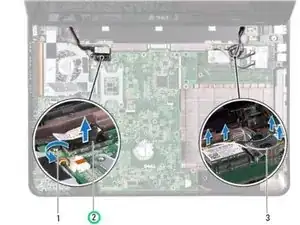

  8. 1ck43ep6qkZDfDFP

    • Connect the display cable to the connector on the system board.

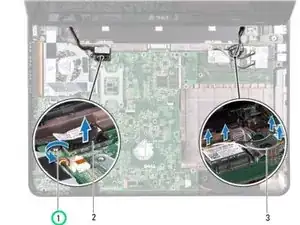

  9. UiWLSaCKLvZXA3g1

    • Tighten the display cable grounding screw.

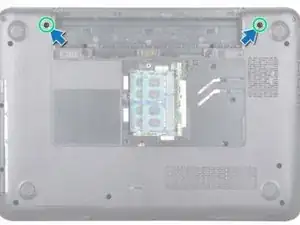

  10. iNvyceW3fQieTNHN

    • Replace the two screws at the bottom of the computer.
