Dell Inspiron 14R Hard Drive Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14R Hard Drive Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

6 - 10 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive Assembly.

  1. AXTRb4WilWZarwK1

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in "Before You Begin".

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

    • Remove the screw that secures the hard-drive assembly to the system board.

  2. AHSHJn5NTKgMYErs

    • Slide the hard-drive assembly in the direction shown in the illustration to disconnect it from the connector on the system board.

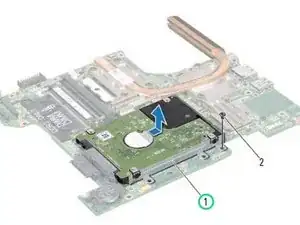

  3. exJgI3Z21b1vCjpN

    • Lift the hard-drive assembly off the system board.

  4. SMrlaj2D55XrYiYO

    • Remove the four screws that secure the hard-drive bracket to the hard drive.

  5. w6WCPMUZkOGHyYnW

    • Lift the hard drive away from the hard-drive bracket.

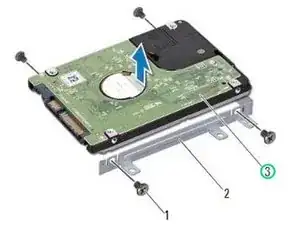

  6. dprL4geZarCtOL63

    • Place the NEW hard drive in the hard-drive bracket.

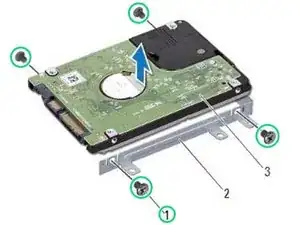

  7. iJ6ZQn1MEc4PyH2x

    • Replace the four screws that secure the hard-drive bracket to the hard drive.

  8. UcJjjMlEMQcIBOs5

    • Place the hard-drive assembly on the system board.

  9. laWhwZYGymOJbHaI

    • Slide the hard-drive assembly to connect it to the connector on the system board.

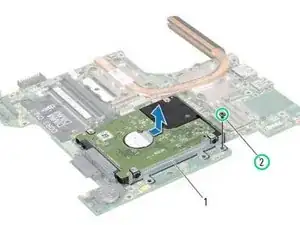

  10. Yt1rhMOjuelqKOPH

    • Replace the screw that secures the hard-drive assembly to the system board.

    • CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may result in damage to the computer.
