Dell Inspiron 14R Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14R Memory Modules Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

5 - 35 Sekunden

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

  1. VIk4ILYurXm4drVh

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in "Before You Begin".

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • CAUTION: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory-module connector until the module pops up.

  2. QQDxkrAExMbvQO1Y

    • Remove the memory module(s) from the memory-module connector.

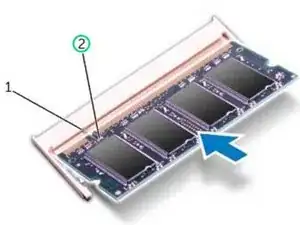

  3. Ey5IjEpuNgdO2x5T

    • Align the notch in the NEW memory module with the tab in the memory-module connector.

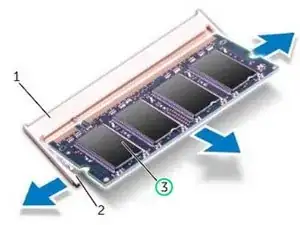

  4. xNIQTyWKIatWUflI

    • Slide the memory module firmly into the slot at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.
