Dell Inspiron 14R SE 7420 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14R SE 7420 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

9 - 25 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. tRq4u2kskUcmnBRB

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin".

    • Close the display and turn the computer over.

  2. TK6TH4s2EVbfZlHt

    • Remove the screws that secure the display assembly to the computer base.

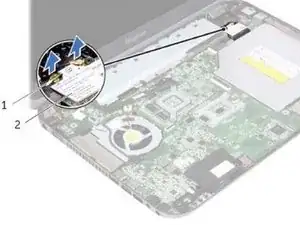

  3. MLNlYxVfDQBJTwcs

    • Turn the computer over and open the display as far as possible.

  4. oYvLTI5DtwyyUfRD

    • Disconnect the antenna cables from the connectors on the Mini-Card.

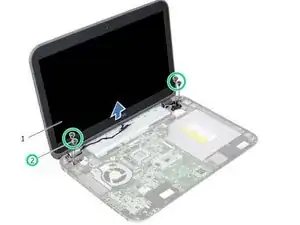

  5. f5dhhCT6qiCNLLJA

    • Remove the screws that secure the display assembly to the computer base.

  6. tjSVxxZypnifCOUR

    • Lift the display assembly off the computer base.

  7. xqYpZsXFq2Clu3sx
    xqYpZsXFq2Clu3sx
    KheVGpr4TAkUumlP

    • Place the display assembly in position and replace the screws that secure the display assembly to the computer base.

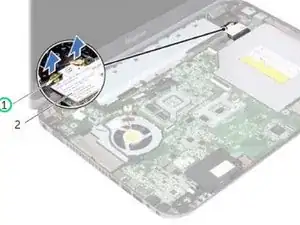

  8. wrAB11WZVcUfAJtE

    • Connect the antenna cables to the connectors on the Mini-Card.

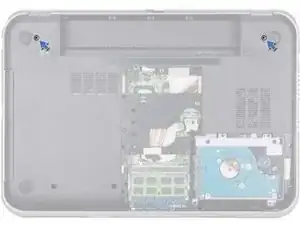

  9. t4HvjJIPXofxXTPx

    • Close the display and turn the computer over.

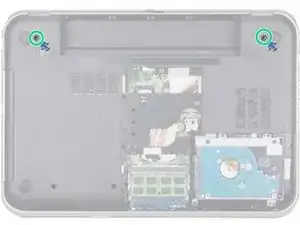

  10. fCvEXIL3SOCbAjKt

    • Replace the screws that secure the display assembly to the computer base.
