Dell Inspiron 14R SE 7420 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14R SE 7420 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

4 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. OcvB5SdPWHqeki2Q

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin".

    • CAUTION: To avoid data loss, do not remove the hard drive while the computer is On or in Sleep state.

    • CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

    • Pull the pull-tab to disconnect the hard-drive cable from the system-board connector.

  2. MlKx1L1gbZahmfDf

    • Remove the screws that secure the hard-drive assembly to the computer base.

  3. OsagFIaZRqMJLWMH

    • Make a note of the hard-drive cable routing and remove the cable from the routing guides.

  4. aVeuLDlPcNUkUDIu

    • Lift the hard-drive assembly along with its cable away from the computer base.

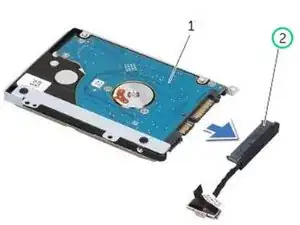

  5. iCqfZEoJNbGRNhHJ

    • Pull the interposer to disconnect the hard-drive cable from the hard-drive.

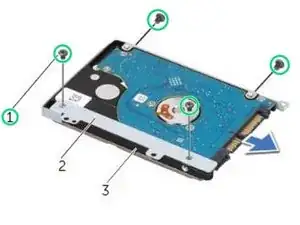

  6. QlhNOPLSFOqdDlUB

    • Remove the screws that secure the hard-drive bracket to the hard drive.

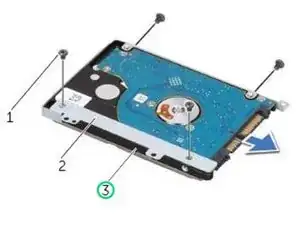

  7. swSEngcOMtnFdKxF

    • Slide the hard-drive off the hard-drive bracket.

  8. BOxdSp5vfKIFvOIE

    • Align the screw holes on the NEW hard-drive bracket with the screw holes on the hard drive.

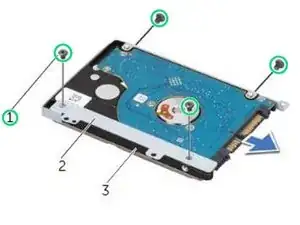

  9. VxVFUyKEEKYvOnXq

    • Replace the screws that secure the hard-drive bracket to the hard drive.

  10. TvCGIY4dAAjacSYL

    • Connect the hard-drive cable interposer to the hard drive.

  11. O2CSQd2BSyWsPIBs

    • Place the hard-drive assembly in the hard-drive bay on the computer base.

  12. gaRuav1gsyHGWXbM

    • Replace the screws that secure the hard-drive assembly to the computer base.

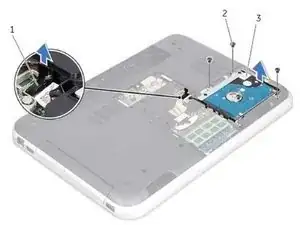

  13. EyVNf5ghAJwOhgSd

    • Route the hard-drive cable through the routing guides on the computer base.

  14. ThfKGAoPK2eSaRQE

    • Connect the hard-drive cable to the system-board connector.
