Dell Inspiron 14R-5421 Keyboard Replacement

Geschrieben von: Jared paiva
  • Kommentare: 0
Dell Inspiron 14R-5421 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will show you how to remove the keyboard on a Dell Inspiron 14R-5421 laptop. Following these steps in reverse order can also be used put the keyboard on to a Dell Inspiron 14R-5421. It's important to follow these steps closely to guarantee a successful removal or addition of the keyboard.

  1. wVs1AWDy2NXWUesI

    • Push the two sliders away from the battery towards the outer edges.

  2. PY4eJMrVXdYwbjHn
    PY4eJMrVXdYwbjHn
    IEbilHBB1xCGr5LX

    • Remove the battery when it pops up.

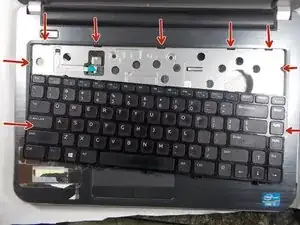

  3. TnZwBIGPPJKRfMjW

    • Find the clips on the keyboard. They are shown by red arrows.

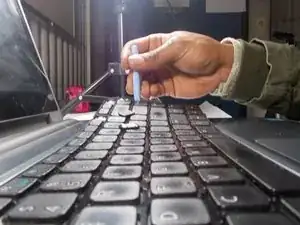

  4. CxidvNsckQKqg4Em

    • Using a pry tool, detach the 9 clips from the keyboard by prying at a 90 degree angle.

    • Be careful while detaching and do not lift the keyboard too high or be too rough. The keys can break easily and there is a fragile ribbon cable beneath the keyboard.

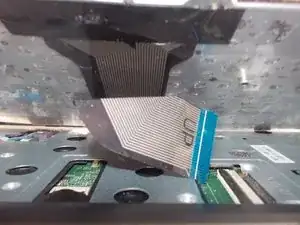

  5. 2BwC3NMVsjlfL3us

    • Carefully disconnect the ribbon cable from the socket and pull apart.

    • The cable could be connected to other components of the laptop. Proceed with caution because the cable is fragile.

Abschluss

To reassemble your device, follow these instructions in reverse order.
