Dell Inspiron 14R-5421 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide will show you how to replace the RAM module. RAM improves the performance of your computer and is necessary for a faster and more efficient CPU. This repair can help resolve performance and memory issues for this laptop.

  1. wVs1AWDy2NXWUesI

    • Push the two sliders away from the battery towards the outer edges.

  2. PY4eJMrVXdYwbjHn
    PY4eJMrVXdYwbjHn
    IEbilHBB1xCGr5LX

    • Remove the battery when it pops up.

  3. oQXdtEmOYKarBhbo

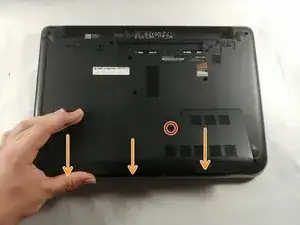

    • Unscrew the cover from the laptop using a Phillips #0 screwdriver.

    • Remove the cover hiding the internal components by sliding it down.

  4. WoNflVE5HsUadO1R

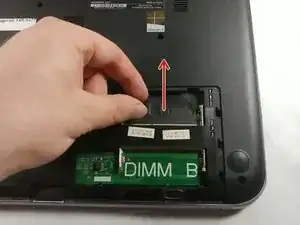

    • Lift the ram module up then pull it out of its slot.

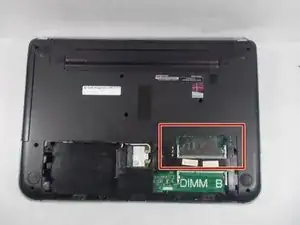

    • Be sure to place the new ram module back into the same slot. Only put a module into slot DIMM B if you have a second working module you want to use.

Abschluss

To reassemble your device, follow these instructions in reverse order.
