Dell Inspiron 14z 1470 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

9 - 30 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. QKeqpaLWUP3PZcH2

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the procedures in Before You Begin.

    • Disconnect the USB/audio cable from the system board.

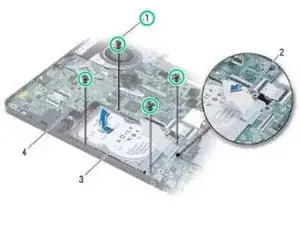

  2. oVJyqYh54UL4pcXB

    • Remove the four screws that secure the hard drive assembly to the computer base.

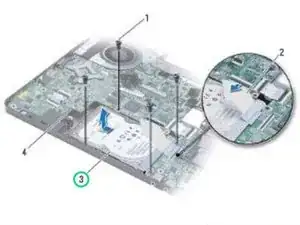

  3. 2b2oAPIYEB6GxxSR

    • Slide and lift the hard drive assembly out of the computer base.

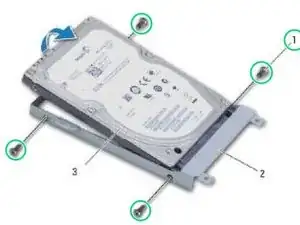

  4. BtYG3XhZSKQcBDWs

    • Remove the four screws that secure the hard drive to the hard drive bracket.

  5. vewnI55N6C6xxdBw

    • Remove the hard drive.

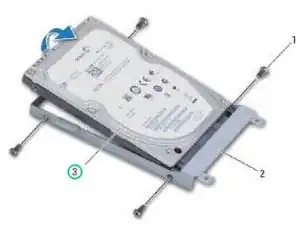

  6. qWXvKSbRrJsnpZM2

    • Place the NEW hard drive in the hard drive bracket and replace the four screws that secure the hard drive bracket to the hard drive.

  7. q2MhRTs2VQAaCEPL

    • Slide the hard drive assembly into the computer base until it is fully seated.

  8. TDCDHICVPDTIRKMv

    • Replace the four screws that secure the hard drive assembly to the computer base.

  9. DFiwFQDG3IYKjVUE

    • Connect the USB/audio cable to the USB/audio board.
