Dell Inspiron 14z N114z Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14z N114z Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 - 35 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

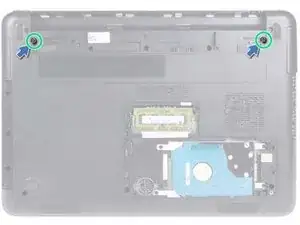

  1. uIHVuWn6KUJPbRmT

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in "Before You Begin".

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Remove the two screws that secure the display assembly to the computer base.

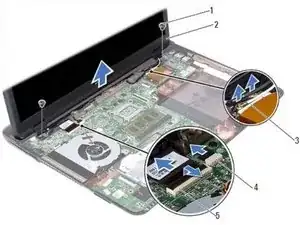

  2. GJugPrbUb4fxFEyI

    • Turn the computer over and open the display as far as possible.

  3. RT5HMIActV4DHoWR

    • Lift the connector latch and disconnect the display cable from the connector on the system board.

  4. HyO41VBfbjEDKGQu

    • Note the routing of the display, camera, and mini-card antenna cables, and remove the cables from their routing guides.

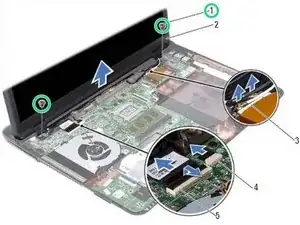

  5. bZSUL5vmTXFb6hRg

    • Remove the two screws that secure the display assembly to the computer base.

  6. B6x5ZeCVHtFEcZTW

    • Lift the display assembly off the computer base.

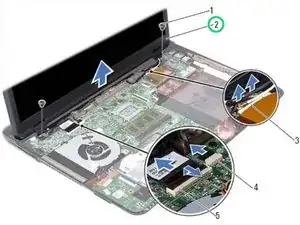

  7. siN6KWFDwVSJHXPB
    siN6KWFDwVSJHXPB
    ijnYcs3sVgQM1cPO

    • Place the NEW display assembly in position and replace the two screws that secure the display assembly to the computer base.

    • NOTE: Ensure that no cables are caught between the display assembly and the computer base.

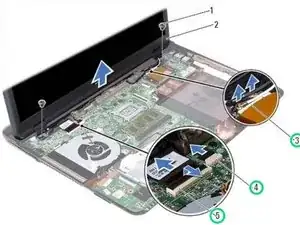

  8. CSPjCEmTviRXy3sZ

    • Route the display, camera, and mini-card antenna cables through their routing guides.

  9. DelETIAX1obduihU

    • Slide the display cable in the connector on the system board and press down the latch to secure the cable.

  10. 3PLHeCKK2fboVeHn

    • Turn the computer over.

    • Replace the two screws that secure the display assembly to the computer base.
