Dell Inspiron 14z N114z Hard Drive Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14z N114z Hard Drive Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

10 - 30 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive Assembly.

  1. xxSNDqsLVuqVRjAU

    • Follow the instructions in "Before You Begin".

    • Remove the four screws that secure the hard-drive assembly to the computer base.

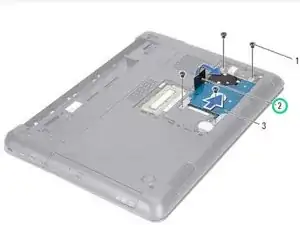

  2. wu3Tj2fHEW3ugmDi

    • Using the pull-tab, slide the hard-drive assembly to disconnect it from the connector on the system board.

  3. Vq2ooOAkp4msl65l

    • Lift the hard-drive assembly off the computer base.

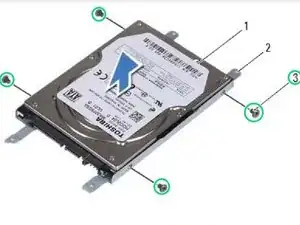

  4. 3gN3mbxZd5JDrcIJ

    • Remove the four screws that secure the hard-drive bracket to the hard drive.

  5. Syj3iOFNW2CHry2b

    • Lift the hard drive away from the hard-drive bracket.

  6. GMtMECVWdFCKtlSp

    • Align the screw holes on the hard-drive bracket with the screw holes on the hard drive.

  7. sVvKovSc2EJsDtPC

    • Replace the four screws that secure the hard-drive bracket to the hard drive.

  8. UvjXyKAJORqtl2EA

    • Place the hard-drive assembly in the computer base.

  9. jUplGLQnLQxjtolP

    • Using the pull-tab, slide the hard-drive assembly into the connector on the system board.

  10. yW3SWdAGHR2IFb2d

    • Replace the four screws that secure the hard-drive assembly to the computer base.
