Dell Inspiron 14z-5423 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14z-5423 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

6 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. SgB3QExXA6tZF2HA

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin". After working inside your computer, follow the instructions in "After Working Inside Your Computer".

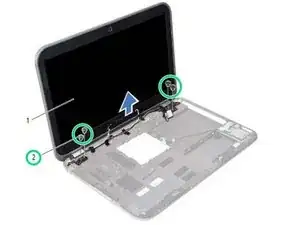

    • Remove the screws that secure the display assembly to the computer base.

  2. rOK25DkhvZvkMRVF

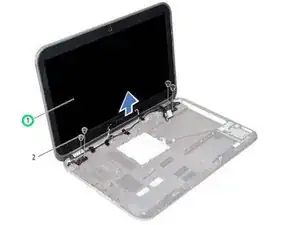

    • Lift the display assembly off the computer base.

  3. xlejmyV6hO1pab6J

    • Place the NEW display assembly on the computer base and align the screw holes on the display assembly with the screw holes on the computer base.

  4. WbnYnyLo4GOnAEsG

    • Replace the screws that secure the display assembly to the computer base.
