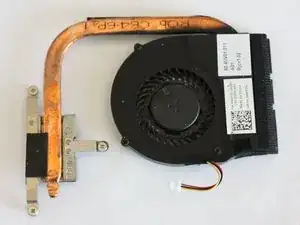

The fan in this laptop prevents the computer from overheating. It provides good airflow into the computer and out through the vents. Any clogging or damage could cause other problems in your computer.

  1. NjJqUWeFJg41iaGY
    NjJqUWeFJg41iaGY
    eNw6FKSMlsFlLWQF

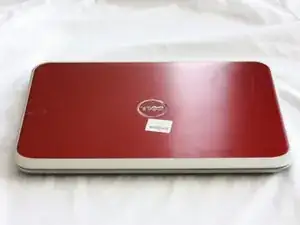

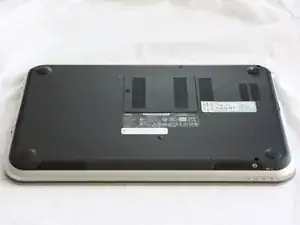

    • Close the display and turn over the computer.

    • Make sure your device is powered down and unplugged before beginning the replacement.

  2. m2WdMOXt3WtO2Xrb

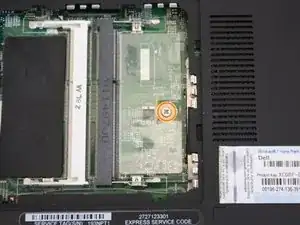

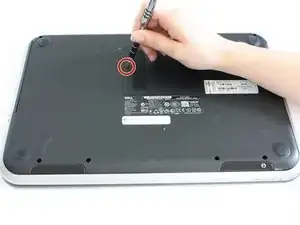

    • Use a J0 bit tipped screwdriver to unscrew the one 6 mm Phillips screw on the RAM cover.

  3. sFZJaXVIjSGuibYV
    sFZJaXVIjSGuibYV
    MFR3Ay1WaGfONyRh

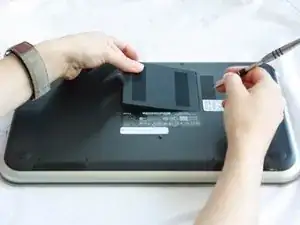

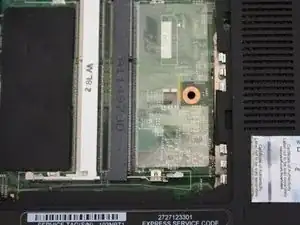

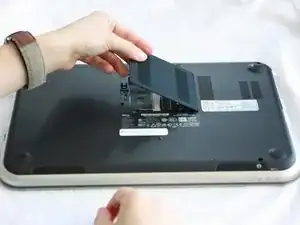

    • Lightly lift the RAM cover up and at an angle, away from the computer.

  4. QtDDZ6kRwVFFKOUD
    QtDDZ6kRwVFFKOUD
    dDDVSdXET5qKNGbN

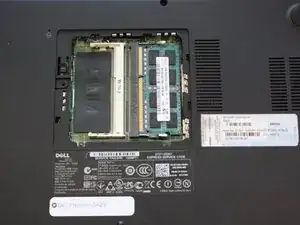

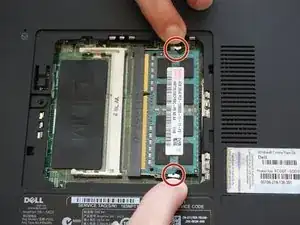

    • Use your fingers to carefully pull the securing clips on the RAM away from each other.

    • The RAM should pop up when the clips are released.

  5. XQRvkFtkTwYK2Gqt
    XQRvkFtkTwYK2Gqt
    DcAN4M35d6klTqpH

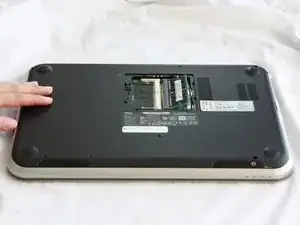

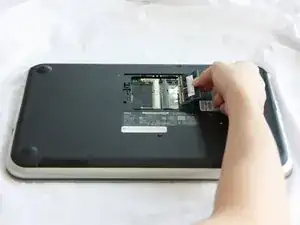

    • Remove the popped up RAM by pulling it away from the connection.

    • If it does not pop up pry it out in a steady and straight direction.

  6. kFPhMTqDfeU65V1h
    kFPhMTqDfeU65V1h
    ITwtDQnL4VgIlFDU

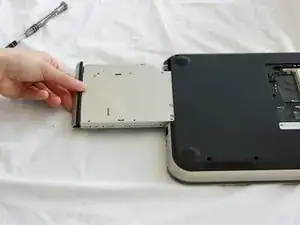

    • Slide the CD/DVD drive on the side of the laptop out using your fingers.

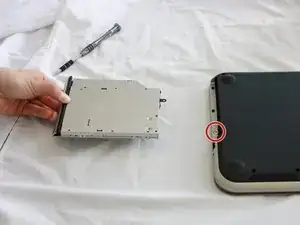

    • Using a J0 bit screwdriver, unscrew the one 2 mm Phillips screw.

    • You only need to unscrew this screw if you are using this as a prerequisite guide.

  7. WSVioDXnhgQSO2FB
    WSVioDXnhgQSO2FB
    tIoHOmbUtr2uDRHl
    JbLSM4RtVdP4baZa

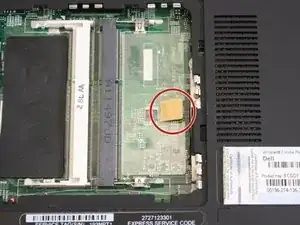

    • Lift the plastic yellow flap on the system board.

    • Use the J0 Bit screwdriver to remove the one 6 mm Phillips screw in center of the system board that is connected to the keyboard.

  8. QmFeT4UYig12Zvlb

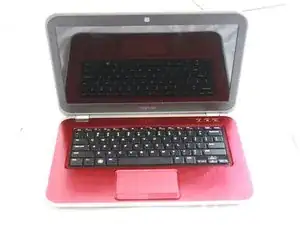

    • Flip over the computer and open the display.

  9. J6t1UZINq3HidKyp
    J6t1UZINq3HidKyp
    F2dw2h3uZ6XITnKk

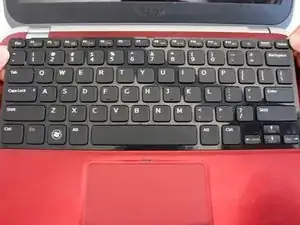

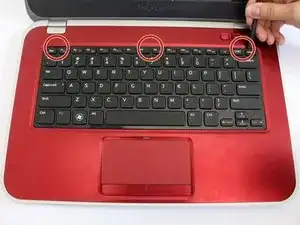

    • Insert a spudger next to the plastic indents located at the top of the keyboard and gently pry to release the securing clips.

    • Lift the keyboard off of the computer.

    • Be careful not to tear the ribbon that attaches the back of the keyboard to the computer when lifting it.

  10. QVr5RCvxURnibQ4a
    QVr5RCvxURnibQ4a
    V6lI5WbRIjCunQWH

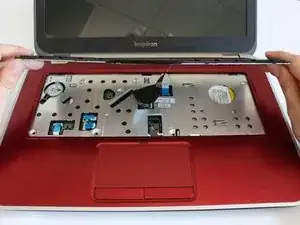

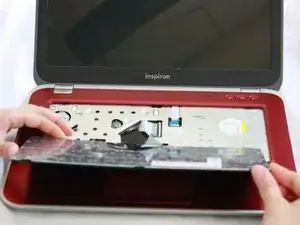

    • Flip the keyboard over onto the palm-rest assembly.

  11. 4EhYVUMPFaeP2t22
    4EhYVUMPFaeP2t22
    o3usPZOkLMvivLyA
    PaRZxyGN5EkyEaVE

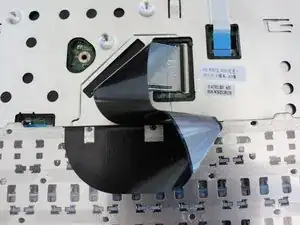

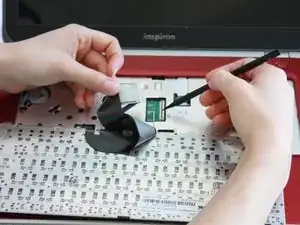

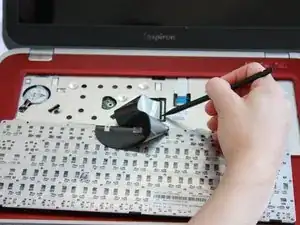

    • Flip the little black securing bar near the base of the ribbon with a spudger to release the ribbon from the computer.

    This description is incorrect. I juist ruïned the keyboard connector. In my laptop there is no black securing bar. Instead, the white connector from the keyboard needs to come out of the black one on the motherboard. This is done horizontally.

    Collin Bootsveld -

  12. 3mrXMtWnrlLRBtCt

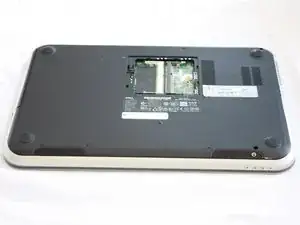

    • Close the display and turn over the computer.

  13. 1I6GfJ6Kew5AXg2q
    1I6GfJ6Kew5AXg2q
    p2tpabk62PCnATWK
    wo4QkYPoOl5fcelF

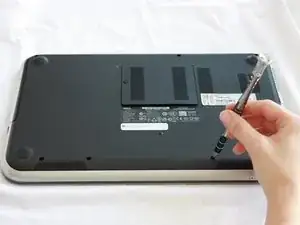

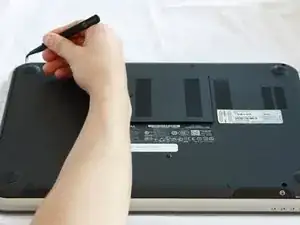

    • Remove all 7 rubber screw caps with tweezers.

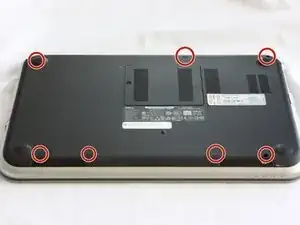

    • Use a J0 Bit tipped screwdriver unscrew the seven 6 mm Phillips screws on the back casing of the laptop.

  14. vnWtt5yf65lIGwk3
    vnWtt5yf65lIGwk3
    LSO4CpJ2e2pJsZMy
    • Flip the computer over and open the display.

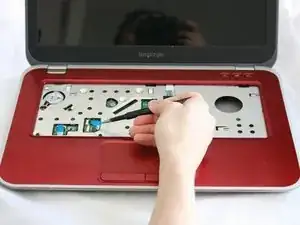

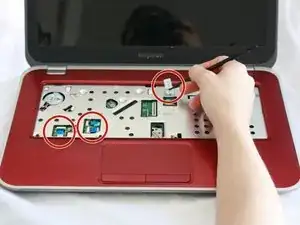

    • Pull on the blue tabs to disconnect the palm rest assembly from the computer.

    Be sure to release the securing bars on each of the ribbon cables before pulling on the blue tabs (similar to the keyboard ribbon cable in step 11).

    ericfogleman -

  15. L3lFAD2V5OFUPnkT

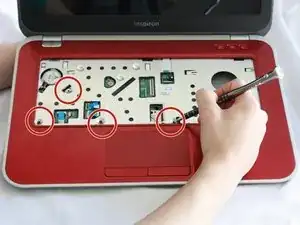

    • Use J0 Bit screwdriver to remove all four 6 mm Phillips screws.

  16. XuWWXRvCfcMMODA4
    XuWWXRvCfcMMODA4
    6IQrylDpLr2p4h5f
    ebeuFFyKKIkvoSEp

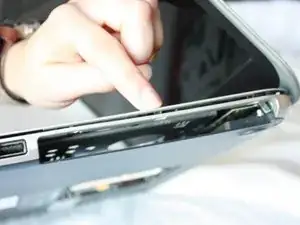

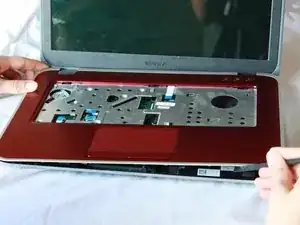

    • Gently wedge the nylon spudger underneath the palm-rest assembly to release the latches.

    • Continue this process on all sides of the computer edges until the assembly pulls off.

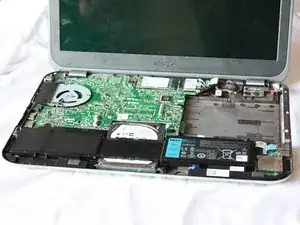

    • Remove the palm rest assembly.

    • If you have difficulty lifting up the assembly, you might not have taken out all 7 screws on the bottom of the computer.

  17. rUF5IpcLwCVdCnYI
    rUF5IpcLwCVdCnYI
    L1TrjsQyMiALUTVH

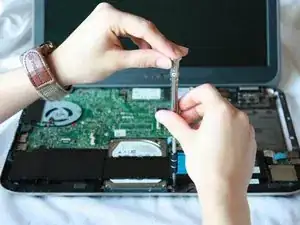

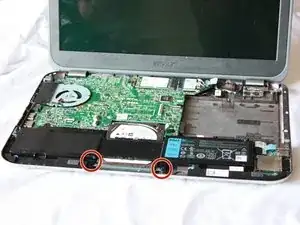

    • Use a J0 Bit screwdriver to remove the two 6 mm Phillips screws securing the battery located near the bottom of the laptop.

  18. AEXTUSc2jgLVxTAw
    AEXTUSc2jgLVxTAw
    kugWS2t6hKZ1tMoT
    UEEpcZ5JxoIYCRTN

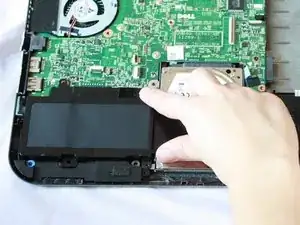

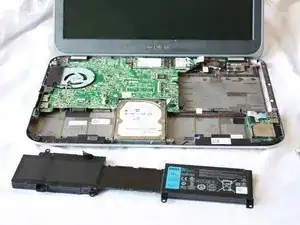

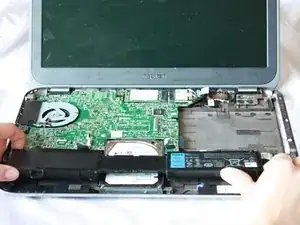

    • Lift the tiny black tab and pull the battery out at a slight angle.

  19. RvfqvUSDFFCv5Xbx
    RvfqvUSDFFCv5Xbx
    IZt5iaws4FriXHkS

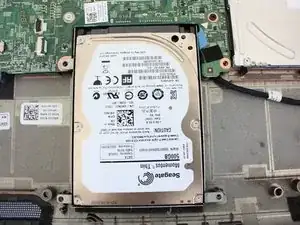

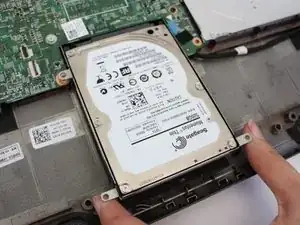

    • Lift up the bottom of the hard drive which is located at the bottom of the laptop.

    • Gently pull the drive out at an angle using your fingers.

  20. UVTTJXg1IG41obZH

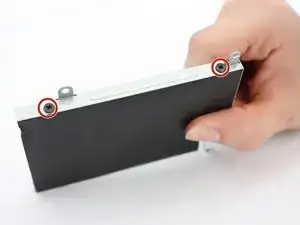

    • Using a J0 bit tipped screwdriver, remove the four 3 mm black screws on both sides of the hard drive bracket.

  21. jAEbAC1hwAEBtlD2

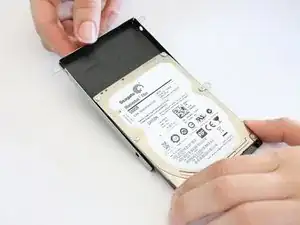

    • Slide the hard drive out of the bracket.

  22. xBXkkTYwcVXxE5Be
    xBXkkTYwcVXxE5Be
    VAUNXcMoHfv2BRKq

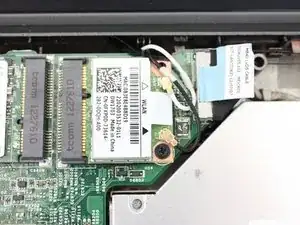

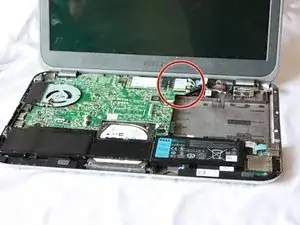

    • Locate the wireless mini card at the top of the laptop.

    • It is next to the place where the optics drive used to be.

  23. 4oDYpJS6xTIZUPhE

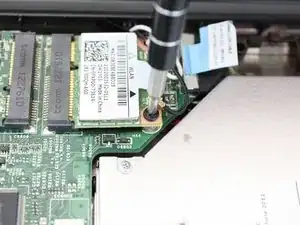

    • Using a J0 tipped screwdriver, remove the 4 mm Phillips head screw.

  24. ewupyB31XTgLCBVH
    ewupyB31XTgLCBVH
    3RuhqPdD4NWy3jN1

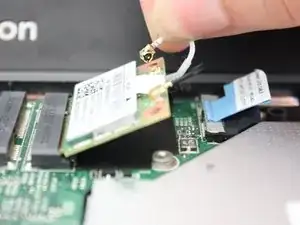

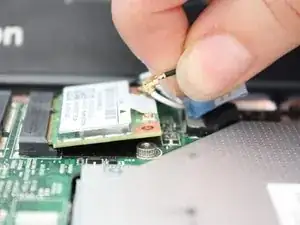

    • Gently, unlatch the black and white wires from the wireless mini card.

  25. xveuXVnFkaUhabFe

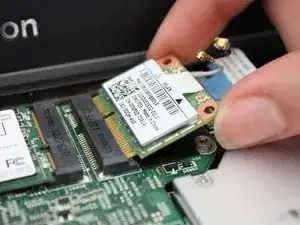

    • At an angle, slide out the wireless mini card.

  26. cTlJxSth1CsGXNXL
    cTlJxSth1CsGXNXL
    rPhvDnBsGyOhARQg

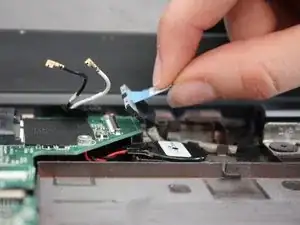

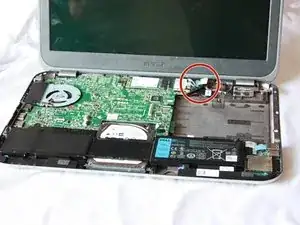

    • Gently pull the the blue ribbon upwards to disconnect the computer from the motherboard.

  27. U3BOCIKQDaPtqcxq
    U3BOCIKQDaPtqcxq
    D1AMVmDSgebG5fWr

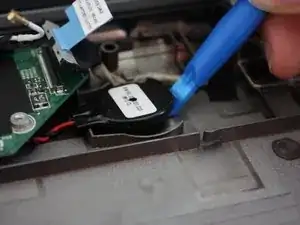

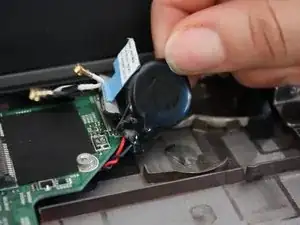

    • Using a plastic opening tool, gently detach the coin cell battery from the foam glue.

    • The coin cell battery is underneath the optical drive.

  28. 2vQ4oGflscWF5RHJ
    2vQ4oGflscWF5RHJ
    WQGNRGKSEiuwRw3o

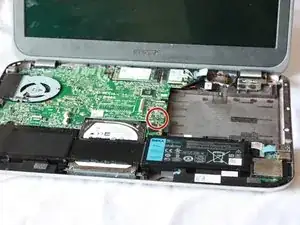

    • Using a J0 tipped screwdriver remove the 6 mm Phillips head screw located at the center of the laptop on the motherboard.

  29. kAV6IC42REwehXQV

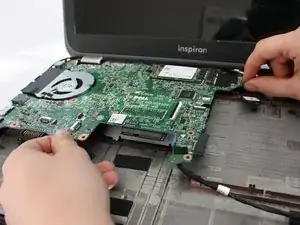

    • Remove motherboard at an upward angle.

    • The coin cell battery and fan will be removed with the motherboard.

  30. RfmTkBxjOnOvAOMy
    RfmTkBxjOnOvAOMy
    FSTxyEyBPIvBAYIG
    • Flip the motherboard over.

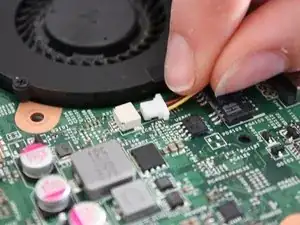

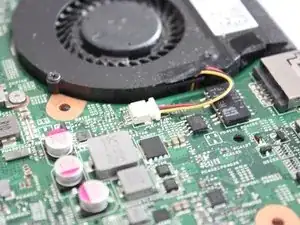

    • Locate the red and yellow wires attached to the fan and gently detach them from the motherboard.

  31. TXwmKObDBaPmiGbQ
    TXwmKObDBaPmiGbQ
    Vi2GNfyluesA5LQQ

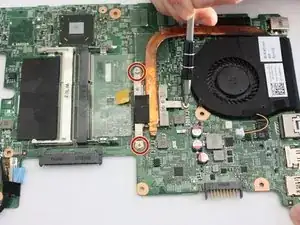

    • Using a J0 tipped screwdriver remove the three 5 mm Phillips head screws that attach fan to the motherboard.

    • The fan base is labeled 1, 2, 3. Make sure you unscrew the screws in this order.

    • The screws are attached to the fan and will fully unscrew.

  32. SGbHJBo22xbEDJgj
    SGbHJBo22xbEDJgj
    mpfmISZ6SDZAMu5O

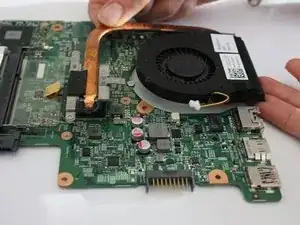

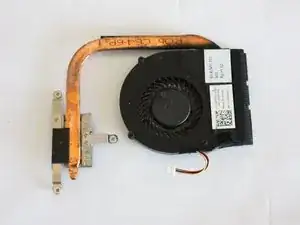

    • Remove the fan from the motherboard by lifting upwards.

Abschluss

To reassemble your device, follow these instructions in reverse order.
