Dell Inspiron 14z-5423 Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 14z-5423 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

3 - 10 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

  1. X1kOUpDbQXsYeqgw

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin". After working inside your computer, follow the instructions in "After Working Inside Your Computer".

    • Close the display and turn the computer over.

  2. EFUKc6KDrRZEqrC3

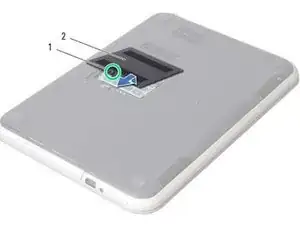

    • Loosen the captive screw that secures the memory-module cover to the computer base.

  3. GhAdLK3u5fOXctGn

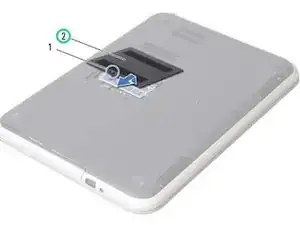

    • Using your fingertips, lift and slide the memory-module cover out of the slots on the computer base.

  4. bGOSAvlQMqxHwbJv

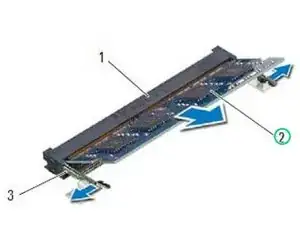

    • Remove the memory module from the memory-module connector.

  5. ERWIiDFHEmsdTroW

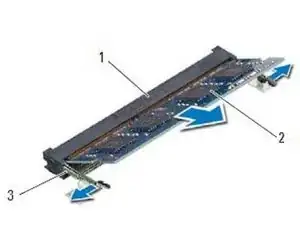

    • Align the notch on the NEW memory module with the tab on the memory-module connector.

  6. nn5nTRmaZ3dSCKRB

    • Slide the memory module firmly into the connector at a 45-degree angle and press the memory module down until it clicks into place.If you do not hear the click, remove the memory module and reinstall it.

  7. 3sJ66MVT4ZJPeDJk

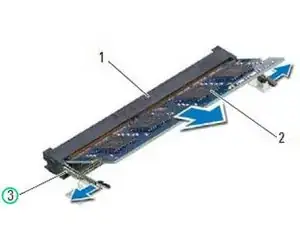

    • Slide the tabs on the memory-module cover into the slots on the computer base and snap the memory-module cover into place.

  8. AgXtXFi2UKjQHhDK

    • Tighten the captive screw that secures the memory-module cover to the computer base.
