Dell Inspiron 15 (N5010) Hard Disk Replacement

Geschrieben von: Philip Le Riche
  • Kommentare: 3
Dell Inspiron 15 (N5010) Hard Disk Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

  1. XnIJfoGuIPoUyAAc

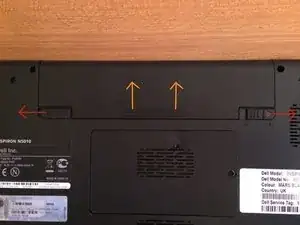

    • Turn the laptop over and unlock the battery by sliding the two locking tabs away from each other. The one on the left is spring loaded. Slide the battery out.

    • Simply slide the battery out in the direction shown.

  2. 5upwVMkrN3dvKGrp
    5upwVMkrN3dvKGrp
    TbgaBTfSmAMIpLuE

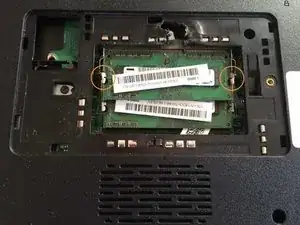

    • Undo the locking screw on RAM cover, then prise open the cover.

    • Release the RAM module or modules by pushing the metal clips outwards. Put the modules aside.

    • On reinserting the RAM modules, ensure that they are fully home in their sockets before angling them downwards to engage the clips.

  3. 6ODhWZbc5NOIvG4b
    6ODhWZbc5NOIvG4b
    ZJUdAhkTAiYakLJQ

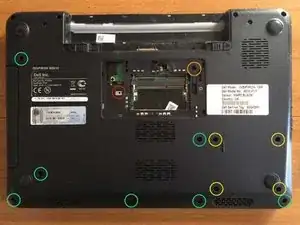

    • Note: if the laptop you are working on is a very slightly different model it is possible that it will have a different number of screws in slightly different positions. The important thing is to note where the shorter screws come from so as to avoid inserting a longer screw in its place on reassembly.

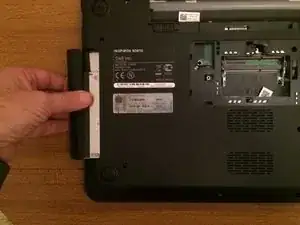

    • Remove a 5mm screw to the left of the RAM sockets, then pull out the CD/DVD drive. (Not necessary if you are only replacing the keyboard.)

    • Remove a 5mm screw to the right and the rear of the RAM sockets. If you just want to replace the keyboard, skip to the next step.

    • If you are going to remove the hard disk, motherboard or fan, remove 4 3mm screws.

    • Remove 7 5mm screws. (There are 6 more at the rear which should be left.)

  4. spNFFLLqCHOkbJCd
    spNFFLLqCHOkbJCd
    MFkX3YWMCufwXFl5

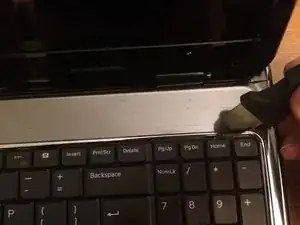

    • With a thin metal spudger you should now be able to release 4 clips along the top of the keyboard in order to lift it out.

    • If you find one or more of the tabs refuse to release, do not force it. You probably missed one (or more) of the screws in the bottom.

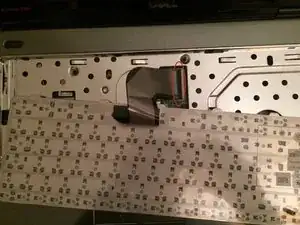

    • Lift the keyboard slightly from the back, disengaging its tabs along the front panel at the front. Turn it over towards you, taking care not to strain the ribbon.

    • Gently lift the locking bar on the ribbon socket and withdraw the ribbon. Put the keyboard aside.

    On a Dell Inspiron 5010 I found the keyboard was held down by double-sided sticky tape under the left-hand side. It can be released with a sharp blade from above taking care to avoid the ribbon cable,

    James Diamond -

  5. HRTPyXJoVDqLhwxI
    HRTPyXJoVDqLhwxI
    g5cnrVPSk2yj6MB5

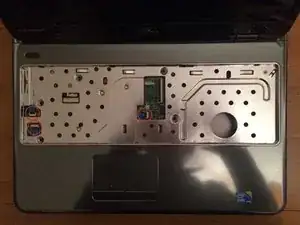

    • Gently lift the black locking tabs and disconnect the 3 narrow ribbon cables.

    • On reassembly, after closing the locking tabs, pull gently on the ribbons. If they come out of the sockets then they weren't fully inserted. Fully inserting them can be a little fiddly, and tweezers can help.

    • Remove 5 screws labelled M2.5x5 on the mid plate.

  6. v1x3mYFV3CErVRk5

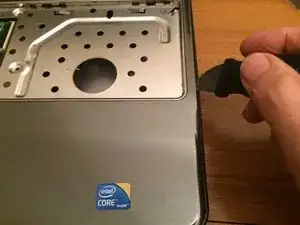

    • Using a spudger, release the front panel from its clips on the front and both sides. If you cannot easily release it, it will be because you have missed one of the screws on the bottom.

    • Once released, gently lift the front panel and put it aside.

  7. WeupgjrWfEla3wRX
    WeupgjrWfEla3wRX
    YxlyrfvsIpqnB12L

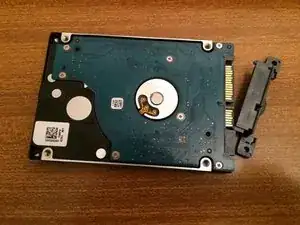

    • Lift the hard drive connector out of its socket and hence remove the hard drive.

    • If you are replacing the hard drive with another one (or with an SSD), transfer the connector from the old drive to the new. This simply pushes on.

Abschluss

To reassemble your device, follow these instructions in reverse order.
