Dell Inspiron 15 3541 Screen Replacement

Close the laptop and place it so that the back of the screen is lying flat on your work surface.

Slide both of the battery-release latches towards the outer edges of the laptop to unlock the battery flap.

Lift the battery at an angle using your fingertips and remove it from the laptop.

Using a PH0 sized screw driver, carefully remove the 4mm screw from the bottom cover.

Using the plastic opening tool carefully pry open the bottom cover

Slide the bottom cover towards you and remove it from the laptop base. Put the cover aside.

Remove the 1 screw 4mm long on the left that is holding in the hard drive using a PH0 screwdriver.

Carefully pull on the tab on the hard drive to slide it out away from the connector.

Lift up and remove the hard drive from the computer.

Remove the two screws (3mm long) using a PH0 screwdriver that are holding the hard drive into the mounting bracket.

Pull up on the black Mylar sheet and remove it from the existing hard drive, it has some adhesive, but will simply pull off with just a small amount of force.

Remove the 5mm long Phillips #0 screw that is holding the optical drive in place, as pictured.

You can now slide the optical disk drive out of the computer.

Open the laptop and fully extend the screen.

Using the nylon spudger, pry the keyboard off the laptop body.

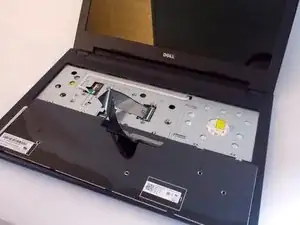

Using your hands, remove the keyboard from the body and place it facedown on the track pad. There will be a cord connecting the laptop and the keyboard: keep this cord intact.

Unhook the connector and you can now remove the keyboard from the laptop

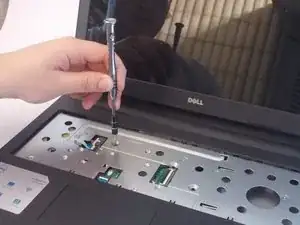

Remove the three 4mm PH0 phillips screws holding the palm rest cover.

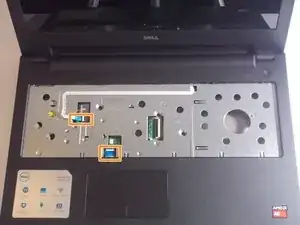

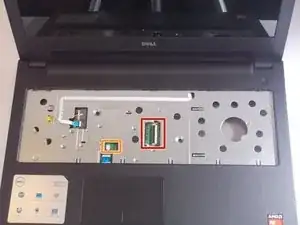

Carefully disconnect all of the connectors with the blue tabs

Close the display and turn the computer over.

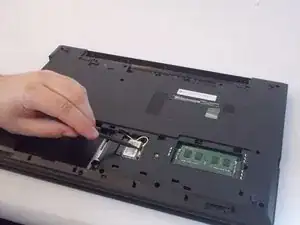

Disconnect the antenna cables from the wireless card using a spudger.

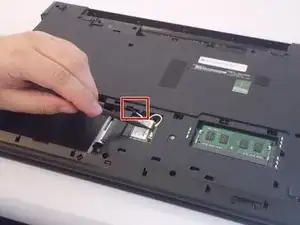

Remove the antenna cables from the routing guide on the computer base, and feed it through the opening towards the other side.

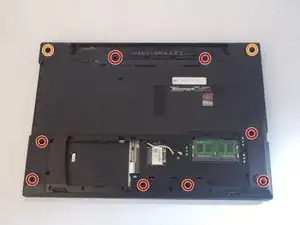

Remove the 10 PH0 Phillips screws that secure the palm rest to the computer base. 8 of which are 6mm long.

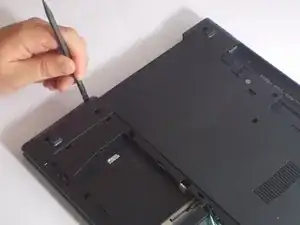

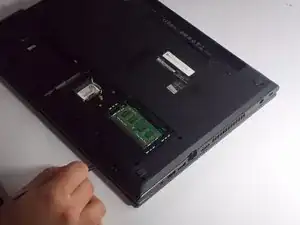

Using a spudger, pry along the edge of the palm rest to begin removing it.

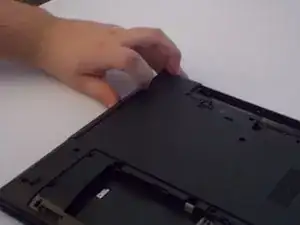

The palm rest is held in with plastic clips all of the way around, so you will have to carefully pry all the way around it.

Turn the computer back over and open the display as far as possible.

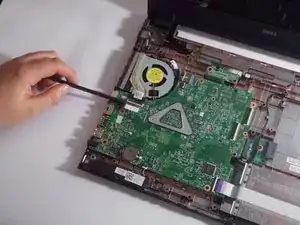

Lift up and towards the left to carefully remove the palm rest and reveal the motherboard.

Move the antenna cables through the slot on the computer base, and move them off to the side of the computer.

Peel off the tape that secures the display cable to the system board.

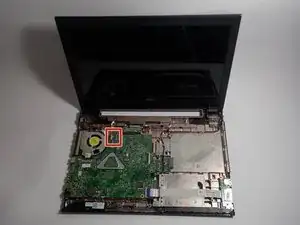

Lift the connector latch and disconnect the display cable from the system board.

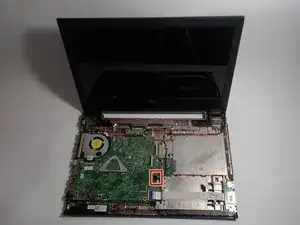

Disconnect the connector for the charging adapter port.

Lift up to remove the charging adapter port from the computer.

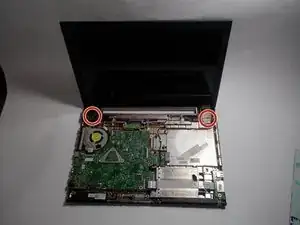

Remove the four 5mm PH0 phillips screws that are securing the display hinges to the case.

There will be two screws on each hinge.

Lift up and forward and you will remove the entire display assembly.
