Dell Inspiron 15 3559 Battery Replacement

Geschrieben von: Terrence15

Kommentare: 0

Dell Inspiron 15 3559 Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

15 - 50 Sekunden

Einleitung

In this guide, we will show you how to remove and replace the Battery.

Schritt 1

S2L1UNGmTgPLCBXI

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.
Close the display and turn the computer over.

Schritt 2

UfXvhFYcmibME3U3

Slide the battery-release latch to the unlock position.

Schritt 3

bcSSJIPHlIJfcHHx

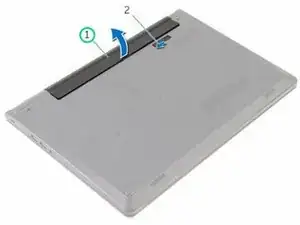

Lift the battery at an angle and remove the battery from the battery bay.

Schritt 4

KfnwEPe1xeB5sXrK

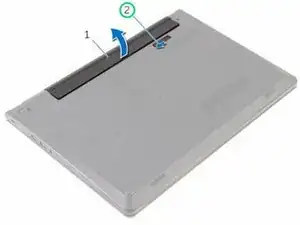

Slide the tabs on the battery into the slots on the battery bay and snap the battery into place.
NOTE: The battery-release latch returns to the lock position if the battery is installed properly.
