Dell Inspiron 15 3559 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15 3559 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

7 - 15 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Display Assembly.

  1. 1kAeD6KUhFCOdyEi

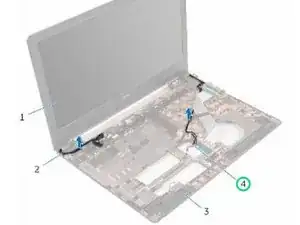

  2. mKNuXAr64IBCJiWH
    mKNuXAr64IBCJiWH
    ITmJ6Ohsdv2RdsWN

    • Note the antenna cable routing and remove the antenna cables from its routing guides on the computer base.

  3. 23QpEAkOSapZwgwH

    • Note the display cable routing and remove the cable from its routing guides on the computer base.

  4. 1hP3ZkXMToIV4kSl

    • Remove the screws that secure the display hinges to the computer base.

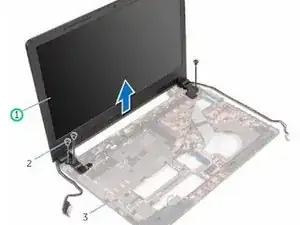

  5. QFEwrsEbfjupUxSc

    • Carefully lift the display assembly off the computer base.

  6. LISFwVkAb2PoAwZJ

    • Align the screw holes on the display hinges with the screw holes on the computer base.

  7. arUvxBSquCcTEVCM

    • Replace the screws that secure the display hinges to the computer base.

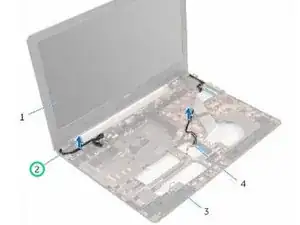

  8. qINQIVEQYMBOMs2G
    qINQIVEQYMBOMs2G
    xV5nSbTyJFBHd5p3

    • Route the display cable through its routing guides on the computer base.

  9. QiX4UaeqZH4rhnW2

    • Route the antenna cables through its routing guides and slide the antenna cables through the slot on the computer base.

    • Close the display and turn the computer over.
