Dell Inspiron 15 3559 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15 3559 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

5 - 7 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. rekGgOojINJIkSRd

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

    • Remove the screws that secure the hard-drive assembly to the computer base.

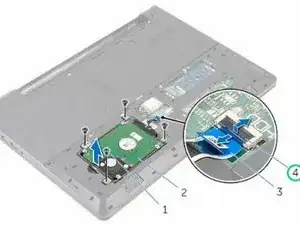

  2. GAYLjQutHPBYGoOv
    GAYLjQutHPBYGoOv

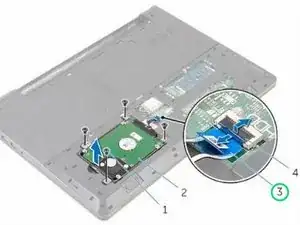

    nYTDYjbp3KpQFQWc

    • Lift the latch and disconnect the hard-drive cable from the system board.

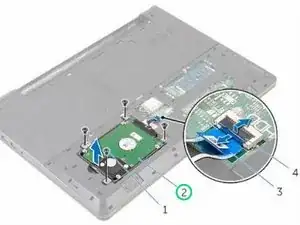

  3. jeDany6Z5ZpDdNdK

    • Lift the hard-drive assembly off the computer base.

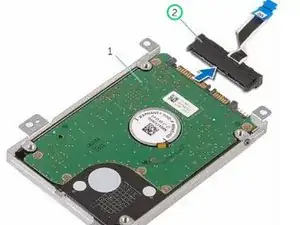

  4. 5LYp5mH6dGIKLp3M

    • Disconnect the interposer from the hard drive.

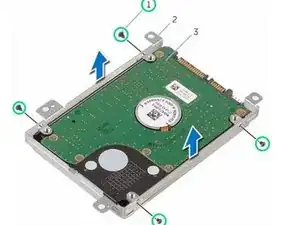

  5. CGCdsXRdKHGwwPlY

    • Remove the screws that secure the hard-drive bracket to the hard drive and lift the hard-drive bracket off the hard drive.

  6. QoTnCsPH2YkfV6TG
    QoTnCsPH2YkfV6TG
    kSVM6KgIxUQa2lxT

    • Place the hard-drive bracket over the NEW hard drive and align the screw holes on the hard-drive bracket with the screw holes on the hard drive.

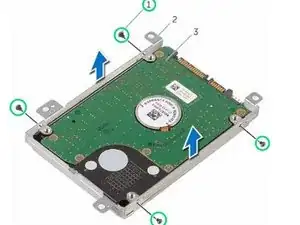

  7. grHGQe2wDwlxJAEB

    • Replace the screws that secure the hard-drive bracket to the hard drive.

  8. KBJBLuFES3j45oCB
    KBJBLuFES3j45oCB
    n12qrWJDhTODSZq2

    • Slide the hard-drive assembly in the computer base and align the screw holes on the hard-drive assembly with the screw holes on the computer base.

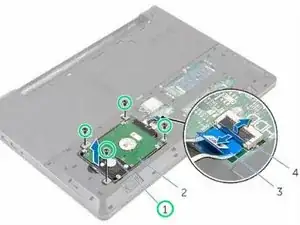

  9. ubkpypCv23BMkt2P

    • Replace the screws that secure the hard-drive assembly to the computer base.
