Dell Inspiron 15 3565 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15 3565 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

6 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. 5LnXuRrPTiBiEHuQ

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • Remove the three screws (2.5x8) that secure the display hinges to the palm-rest assembly.

  2. 1lsNSkxuNlBRyUeM

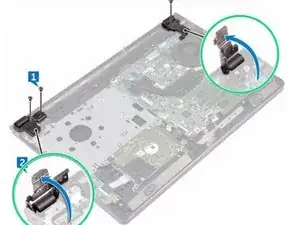

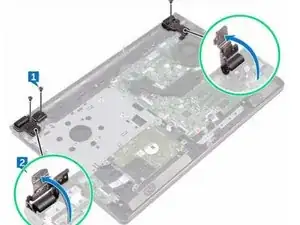

    • Open the display hinges to an angle of 90 degrees.

  3. dveOXCUidfIRoaTC

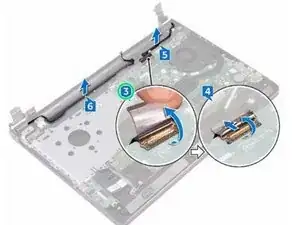

    • Peel the tape that secures the display cable to the palm-rest assembly.

  4. OngrM2V1dYaXJFg2

    • Open the latch and disconnect the display cable.

  5. SEULKcg2qtMBLgWB

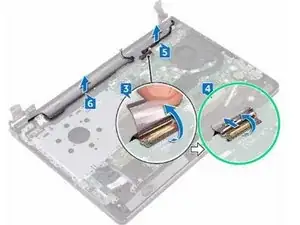

    • Open the latch and disconnect the display cable.

  6. ScdFPDqJsYSFBrUK

    • Note the display cable routing and remove the display cable from the routing guides on the palm-rest assembly.

  7. AyXUd2xVhuOyAPI6

    • Note the antenna cable routing and remove the cable from its routing guides on the palm-rest assembly.

  8. nWO5WQWXkEbLxAJM

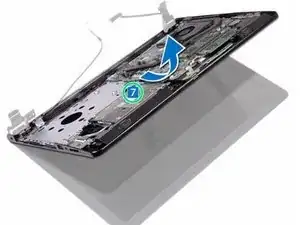

    • Open the palm-rest assembly at an angle and slide it off the display assembly.

  9. dqZQZBGXWCjRjX22

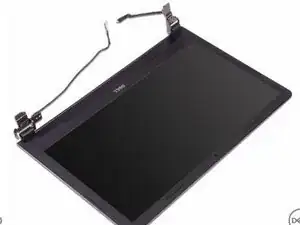

    • Place the NEW display assembly on a clean, flat surface.

  10. RLllKvvlxwXgPqQg

    • Place the palm-rest assembly on the display assembly.

  11. SKW4ewXq3pGnprFG

    • Close the display hinges and align the screw holes on the display hinges with the screw holes on the palm-rest assembly.

  12. AE3OY3V3fGKledAd

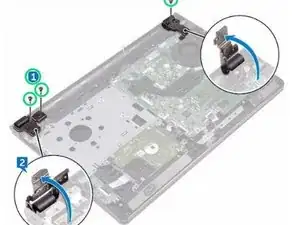

    • Replace the three screws (2.5x8) that secure the display hinges to the palm-rest assembly.

  13. fMxFDtLK4frLEtqt

    • Route the antenna cables through the routing guides on the palm-rest assembly.

  14. UlM13SVQaMeRNdec

    • Connect the display cable and close the latch to secure the cable.

  15. 5ZfsUNM1eVlc5NLs

    • Route the display cable through the routing guides on the palm-rest assembly

  16. HFVIXZMEHol5AeDb

    • Adhere the tape that secures the display cable to the palm-rest assembly.

    • Close the display and turn the computer over.
