Dell Inspiron 15 3565 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15 3565 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

5 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. aQgOGMCsn1BbMD1X

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

    • Open the latch and disconnect the hard-drive cable from the system board.

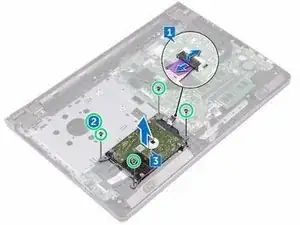

  2. taXjSaLjiWBAs1wV

    • Remove the four screws (M2x3) that secure the hard-drive assembly to the palm-rest assembly.

  3. AML5AjJZDmD26dcA

    • Lift the hard-drive assembly off the palm-rest assembly.

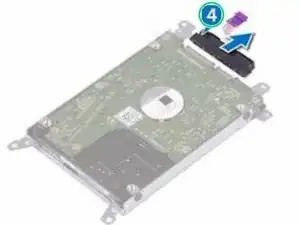

  4. JkMPWumLcN4GTYGp

    • Disconnect the interposer from the hard-drive assembly.

  5. MuVAgRmDRpcrUGKT

    • Remove the four screws (M3x3) that secure the hard-drive bracket to the hard drive.

  6. MlyWHR3FBRZQ1CcF

    • Lift the hard drive off the hard-drive bracket.

  7. Our2kUT1yX3dQWMV

    • Align the screw holes on the hard-drive bracket with the screw holes on the NEW hard drive.

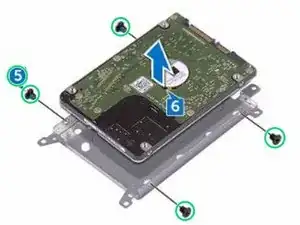

  8. 5XifLYWnxKQAGfS5

    • Replace the four screws (M3x3) that secure the hard-drive bracket to the hard drive.

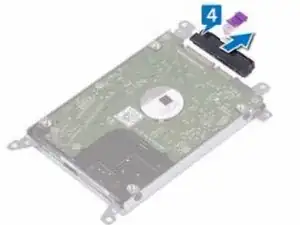

  9. KX1KlfHBNcJfkQFC

    • Connect the interposer to the hard drive.

  10. w45SMUbhdq5Uwnn1
    w45SMUbhdq5Uwnn1

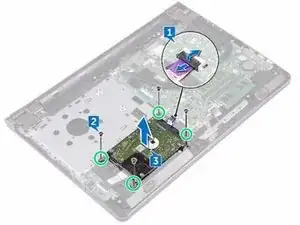

    JdMpiKO2ku3V3vPg

    • Place the hard-drive assembly in the palm-rest assembly and align the screw holes on the hard-drive assembly with the screw holes on the palm-rest assembly.

  11. kQk6kxBblwAaSkMt

    • Replace the four screws (M2x3) that secure the hard-drive assembly to the palm-rest assembly.

  12. dx4IobLAP1cXgC1H

    • Slide the hard-drive cable into its connector on the system board and close the latch to secure the cable.
