Dell Inspiron 15 3567 Memory Module Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15 3567 Memory Module Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

1 - 3 Minuten

Einleitung

In this guide, we will be show how to remove and replace the Memory Module.

  1. vxwSYGWhTIERNQDQ

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Compter.

    • Using your fingertips, carefully spread apart the securing clips on each end of the memory-module slot until the memory module pops up.

  2. yHgaAlPIMv2KMVcO

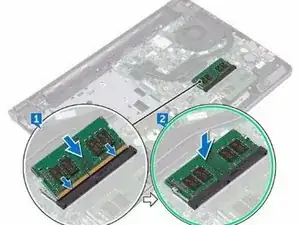

    • Slide and remove the memory module from the memory-module slot

  3. dXmhIgfXKpHhumZ2

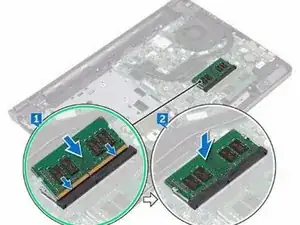

    • Align the notch on the NEW memory module with the tab on the memory-module slot and slide it firmly into the slot at an angle.

  4. UunJPyplc5imTqlH

    • Press the memory module down until it clicks into place.

    • NOTE: If you do not hear the click, remove the memory module and reinstall it.
