Dell Inspiron 15 3568 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15 3568 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

3 - 7 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. qExA4nQjmHG1VkBK

  2. FA1d3uRY2uCQ2QvR

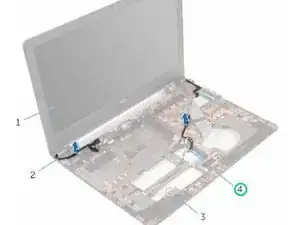

    • Note the antenna cable routing and remove the antenna cables from its routing guides on the computer base.

  3. gl2xgTmedWm5sQKk

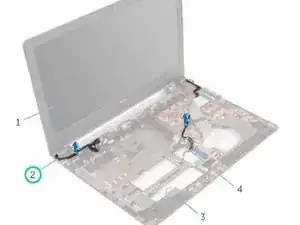

    • Note the display cable routing and remove the cable from its routing guides on the computer base.

  4. dMo6pL1lgyOkV1SK

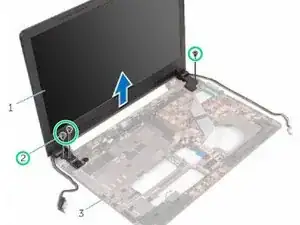

    • Remove the screws that secure the display hinges to the computer base.

  5. kCqUy2QKPHHONYQa

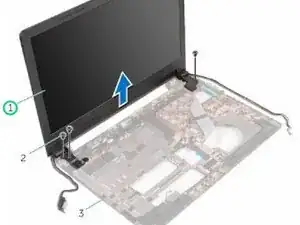

    • Carefully lift the display assembly off the computer base.

  6. 4HMyC3SkySCdfE2X

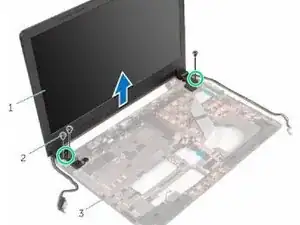

    • Align the screw holes on the display hinges with the screw holes on the computer base.

  7. qfWZqoGLiFOdT3gC

    • Replace the screws that secure the display hinges to the computer base.

  8. 3mPUltUXeFy2YwHF

    • Route the display cable through its routing guides on the computer base.

  9. 46rJyrMEcvExvwf4

    • Route the antenna cables through its routing guides and slide the antenna cables through the slot on the computer base.

    • Close the display and turn the computer over.
