Dell Inspiron 15 3568 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

2 - 10 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

  1. 4SDmdUOHAFaLSEGQ

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

    • Remove the screws that secure the hard-drive assembly to the computer base.

  2. KnspF51TIq6D2d1X
    KnspF51TIq6D2d1X
    vHixElFwWZI12aRq

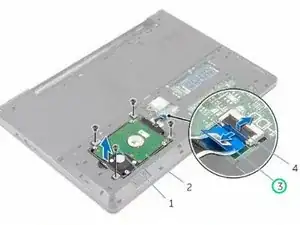

    • Lift the latch and disconnect the hard-drive cable from the system board.

  3. KAWQ3IAmyJlY5FwG

    • Lift the hard-drive assembly off the computer base.

  4. ZFpdLF3t4ZRIklsn

    • Disconnect the interposer from the hard drive.

  5. IKSJaLaebS1GPb6d

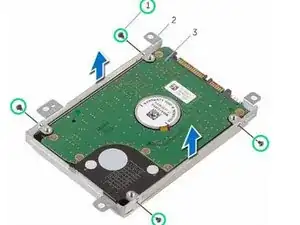

    • Remove the screws that secure the hard-drive bracket to the hard drive and lift the hard-drive bracket off the hard drive.

  6. vXvEx3LTGY1HyMJB

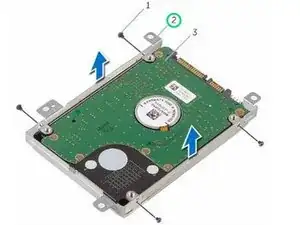

    • Place the hard-drive bracket over the NEW hard drive and align the screw holes on the hard-drive bracket with the screw holes on the hard drive.

  7. MSjNEFTAH5h2s4ft

    • Replace the screws that secure the hard-drive bracket to the hard drive.

  8. 2jmrvlHWlMUMSB3O

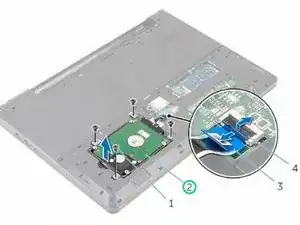

    • Slide the hard-drive assembly in the computer base and align the screw holes on the hard-drive assembly with the screw holes on the computer base.

  9. pQTHVHu2reX6IiEC
    pQTHVHu2reX6IiEC
    qExAc5mNQRMVZMjW

    • Slide the hard-drive cable into its connector and close the latch to secure the cable.

  10. 54IMb6gQUUKHN1ko

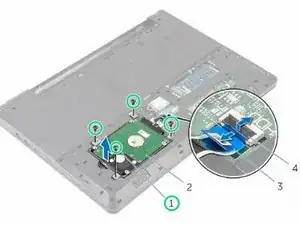

    • Replace the screws that secure the hard-drive assembly to the computer base.
