Dell Inspiron 15 3593 Battery Replacement

Geschrieben von: Abdul Obaid
  • Kommentare: 1
Dell Inspiron 15 3593 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

15 - 20 Minuten

Einleitung

After multiple cycles of charging your battery, it will eventually no longer be able to hold a charge and you'll need to replace it. This is a simple battery replacement guide for the Dell Inspiron 15 3593.

Before using this guide, please make sure that the laptop is physically unplugged as well as turned off during the replacement.

  1. CYNV3hhQAMHaJFLa
    CYNV3hhQAMHaJFLa
    uTIsYHDiZXvAVJrZ

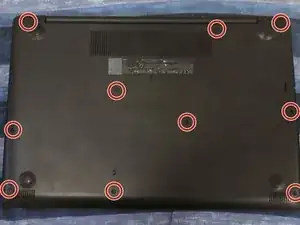

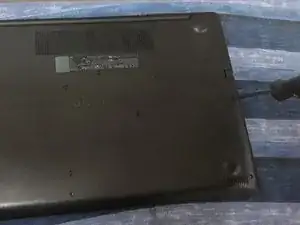

    • First, make sure the computer is turned off and unplugged.

    • Turn the computer upside down so its backside is facing you and place on a flat and clean surface to work.

    • Use a Phillips #0 screwdriver to remove six (M2.5x7mm) screws, three (M2x2mm) screws, and one (M2x4mm) screw.

    • Remove the optical drive.

  2. uXNnSp1vYJLyJJVd
    uXNnSp1vYJLyJJVd
    yJnN5Cts1YFLMtWZ

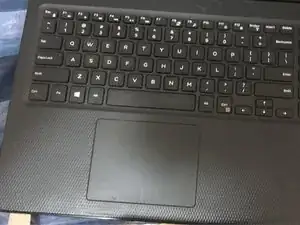

    • Turn the laptop over and open the lid so the screen faces you.

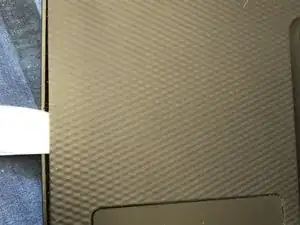

    • Use the plastic opening tool to gently pry the top panel with keyboard off of the computer. Work your way around the perimeter and undo the clips holding it down.

    • Don't use a butter knife like in the photo, as this could cause damage to the device.

  3. K4OvIj3kYNZCKUlN
    K4OvIj3kYNZCKUlN
    OCZerZlsEwPLkoJ6
    fhywrV6XCFaWHUji

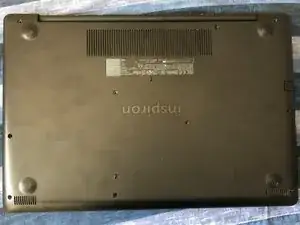

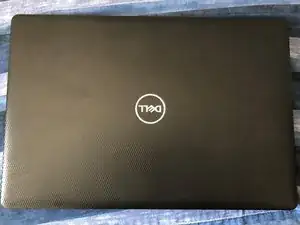

    • Close the lid and flip the laptop so the backside is facing up.

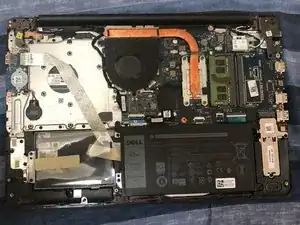

    • Pull the back panel off to reveal the battery.

  4. EnYHw2fDK1kq3UNX
    EnYHw2fDK1kq3UNX
    MYFSRJ2N6lE3YoRr

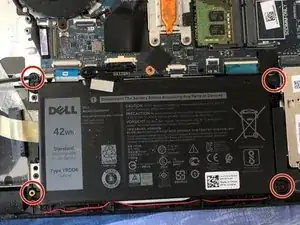

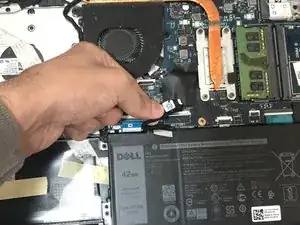

    • Disconnect the battery connector from the motherboard.

    • Use the Phillips #0 screwdriver to remove the four (M2x3mm) screws that are keeping the battery in place.

  5. euJohWMhKm5HfUOX

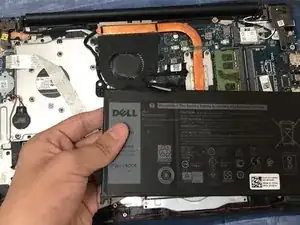

    • Lift the battery out carefully and put the new battery in.

Abschluss

Reassemble the computer by following
the above steps in reversed order.
