Dell Inspiron 15 5565 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Battery.

  1. vEbEXEYCvm6uHsQf

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • Remove the screws that secure the battery bracket to the system board and palm rest and keyboard assembly.

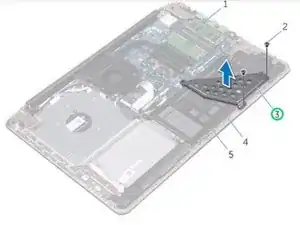

  2. GLfue5GHKQY1bSpP

    • Lift and remove the battery bracket.

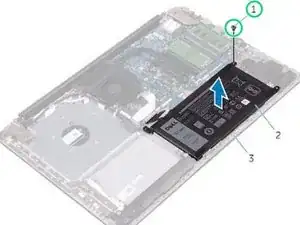

  3. EFJMwv5bfOFMN2kw

    • Remove the screw that secures the battery to the palm rest and keyboard assembly.

    • NOTE: Note the location of the screw that secures the battery to the palm rest and keyboard assembly.

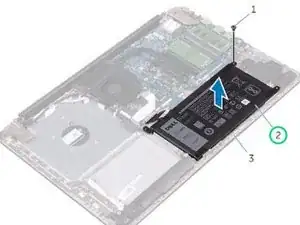

  4. uDjSM3HRbMdjOLjK

    • Lift the battery off the palm rest and keyboard assembly.

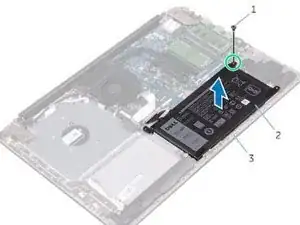

  5. KDR22EQFilBNoGOk

    • Align the screw holes on the NEW battery with the screw holes on the palm rest and keyboard assembly.

  6. Axg5tYPBetHydmXn

    • Replace the screw that secures the battery to the palm rest and keyboard assembly.

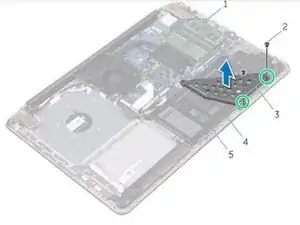

  7. AFOJCWfKNSLMcxcC

    • Align the screw holes on the battery bracket with the screw holes on the system board and palm rest and keyboard assembly.

  8. 2x2I1IQmIby4gEUB

    • Replace the screws that secure the battery bracket to the system board and palm rest and keyboard assembly.
