Dell Inspiron 15 5565 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15 5565 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

3 - 10 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Hard Drive.

  1. 51C2BTZMMOKRQSsJ
    51C2BTZMMOKRQSsJ
    t61JvFYPXgetoHJB
    O1lQsDX1Dy4LFavO

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

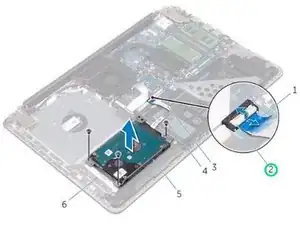

    • Lift the latch and using the pull tab, disconnect the hard-drive cable from the system board.

  2. xKURTKfquJM5ngjR

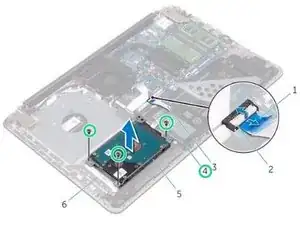

    • Remove the screws that secure the hard-drive assembly to the palm rest and keyboard assembly.

  3. MxofACMAQOHMmUQt

    • Lift the hard-drive assembly along with its cable off the palm rest and keyboard assembly.

  4. CA45dJDQTWLiAoVR
    CA45dJDQTWLiAoVR
    NuNRfhOrNuHKfdVY

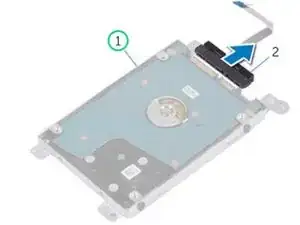

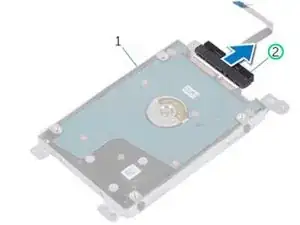

    • Disconnect the interposer from the hard-drive assembly.

  5. kVbAUMxrGDiLXQ1j

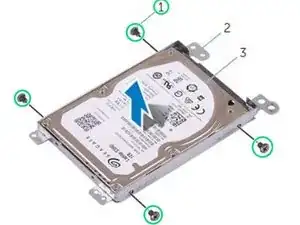

    • Remove the screws that secure the hard-drive bracket to the hard drive.

  6. fmW3n4aCBtH1oHrD
    fmW3n4aCBtH1oHrD
    EMrUsYGZvpuRTUhL

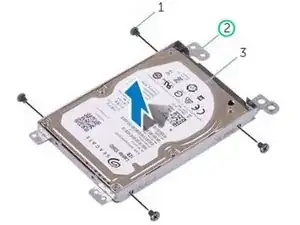

    • Lift the hard drive off the hard-drive bracket.

  7. HbYrM22YUZLEXoJN

    • Align the screw holes on the hard-drive bracket with the screw holes on the NEW hard drive.

  8. FgDqHNNMaHqUnMYo

    • Replace the screws that secure the hard-drive bracket to the hard drive.

  9. wqXErJQPDkXYI1hx

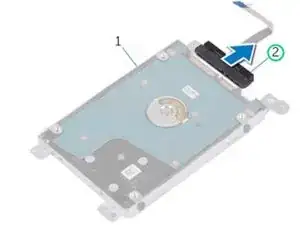

    • Connect the interposer to the hard-drive assembly.

  10. BQCkNkBEv1ME2adv

    • Align the screw holes on the hard-drive assembly with the screw holes on the palm rest and keyboard assembly.

  11. rIpJY5PWS3G3jLtU

    • Replace the screws that secure the hard-drive assembly to the palm rest and keyboard assembly.

  12. j1mn3fIX24sQtK6L

    • Connect the hard-drive cable to the system board and close the latch to secure the cable.
