Dell Inspiron 15 5566 Display Assembly Replacement

Note the antenna cable routing and remove the cable from its routing guides.

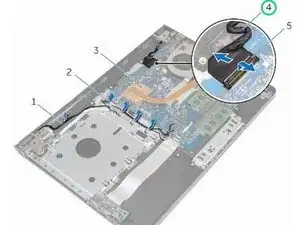

Lift the latch and disconnect the display cable from the system board.

Note the display cable routing and remove the cable from its routing guides.

Turn the computer over.

Open the display at an angle of 90 degrees.

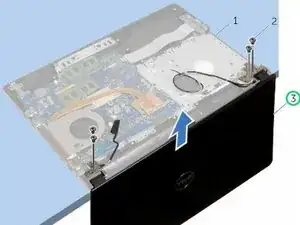

Place the computer on the edge of the table so that the palm-rest assembly is on the table and the display assembly extends past the table edge with the display hinges facing up.

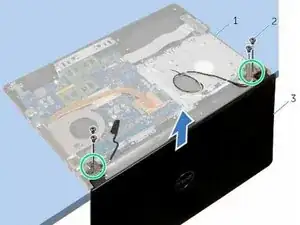

Remove the four screws (M2.5x8) that secure the display hinges to the palm-rest assembly.

Lift the display assembly off the palm-rest assembly.

Place the palm-rest assembly at the edge of the table with the coin-cell battery facing away from the edge.

Align the screw holes on the display hinges with the screw holes on the palm-rest assembly.

Replace the screws that secure the display hinges to the palm-rest assembly.

Route the display cable through the routing guides on the palm-rest assembly.

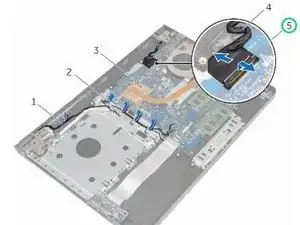

Slide the display cable to the connector and press down on the latch to connect the display cable to the system board.

Route the antenna cable through the routing guides on the palm-rest assembly.
