Dell Inspiron 15 5566 Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15 5566 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

15 - 50 Sekunden

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

  1. rsnuO6vSA4EDJEV6
    rsnuO6vSA4EDJEV6
    CgXNBXFliKmHNtmx
    KfvXTgO5iqVGwBDG

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • Using your fingertips, carefully spread apart the securing clips on each end of the memory-module slot until the memory module pops up.

  2. D3oMAoy1jMjctQPj
    D3oMAoy1jMjctQPj
    FakYfUxcQTc6BYUD

    • Remove the memory module from the memory-module slot.

  3. sNPYTbPIE3v2VPNW

    • Align the notch on the NEW memory module with the tab on the memory-module slot.

  4. EO5hlLAyAUsmw1cO

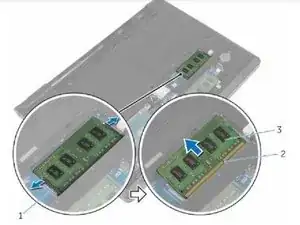

    • Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place.

    • NOTE: If you do not hear the click, remove the memory module and reinstall it.
