Dell Inspiron 15 5566 Memory Modules Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15 5566 Memory Modules Replacement

Schwierigkeitsgrad

Easy

Schritte

13

Zeitaufwand

4 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. yI1xAQAxHmJnI6YT
    yI1xAQAxHmJnI6YT
    XjXFqSeaXvxBoGtP
    YEdIDmkjeZZypZoX

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

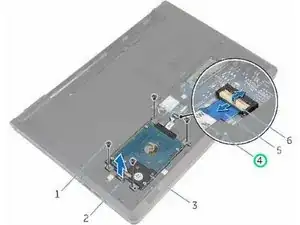

    • Lift the latch and using the pull tab disconnect the hard-drive cable from the system board.

  2. C1CUxpABQZqGCbh2

    • Remove the four screws (M2.5x8) that secure the hard-drive assembly to the computer base.

  3. aWJkixTMPVQTHMof

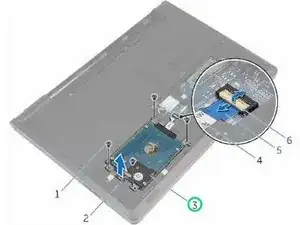

    • Lift the hard-drive assembly out of the computer base using the hard-drive pull tab.

  4. ZvScxcoTogPp1lS6

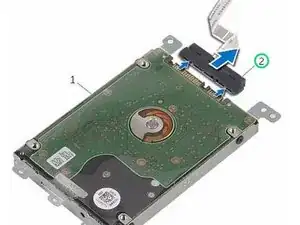

    • Disconnect the interposer from the hard drive.

  5. ErnjBEbuaopmtopR

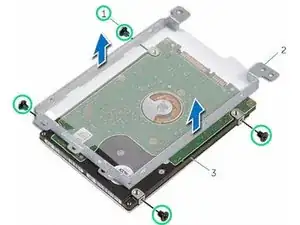

    • Remove the four screws (M3x3) that secure the hard-drive bracket to the hard drive.

  6. bRcYCWslkSw2CyqP
    bRcYCWslkSw2CyqP
    Ree3E2N2RHBQ3BtJ

    • Lift the hard-drive bracket out of the hard drive.

  7. fkSqbFnxACbFeVfd

    • Place the hard-drive bracket on the NEW hard drive.

  8. mSUgJGWLKkXXG2TC

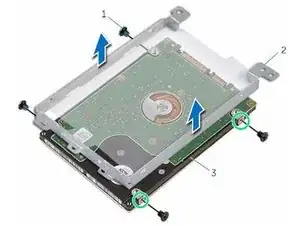

    • Align the screw holes on the hard-drive bracket with the screw holes on the hard drive.

  9. lNNnvlikXE4wEV6P

    • Replace the four screws (M3x3) that secure the hard-drive bracket to the hard drive.

  10. 4gnJZ5GrnJEsEIBh

    • Connect the interposer to the hard drive.

  11. LgQFkyWLgm2iAjjt

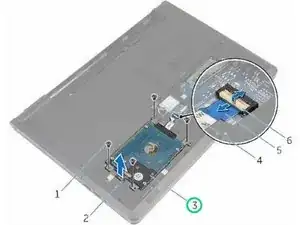

    • Place the hard-drive assembly in the computer base and align the screw holes on the hard-drive assembly with the screw holes on the computer base.

  12. ACcZKsNKLjmWMxhc

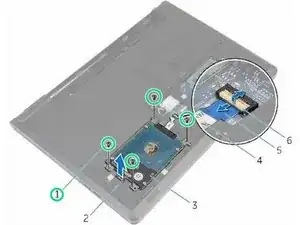

    • Replace the four screws (M2.5x8) that secure the hard-drive assembly to the computer base.

  13. CsVPNyM4KoAgqY4U

    • Slide the hard-drive cable into the connector and press down on the latch to secure the cable to the system board.
