Dell Inspiron 15 5576 Gaming Battery Replacement

Geschrieben von: Terrence15

Kommentare: 2

Dell Inspiron 15 5576 Gaming Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

2 - 6 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Battery.

Werkzeuge

Phillips #0 Screwdriver

Schritt 1

CYD4bTMOEqHkJJwu

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.
Remove the battery cable from the routing guides on the computer base.

Schritt 2

BVWx1uZKit1ItviE

Remove the five screws (M2x5 T8) that secure the battery to the computer base.

Schritt 3

ejFlRaIFdu2ZvxYL

ejFlRaIFdu2ZvxYL

pJt42rHKVxfYMoRG

Using the pull tab, lift the battery, along with its cable, off the computer base.

Schritt 4

Turn the computer over, open the display, and press and hold the power button for five seconds to ground the system board.

Schritt 5

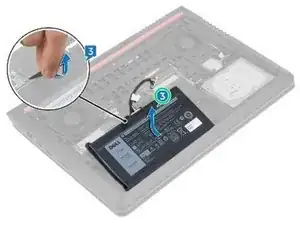

e2NqAsYstXYladZt

Slide the NEW battery in the slot on the computer base.

Schritt 6

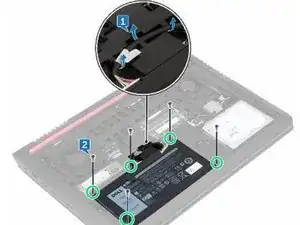

tJuRpRjaqrULQXBG

Align the screw holes on the battery with the screw holes on the computer base.

Schritt 7

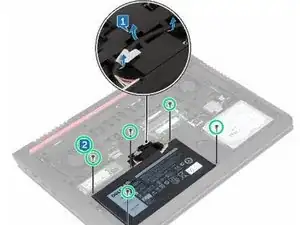

qBLZZF3LymhwLWk4

Replace the five screws (M2x5 T8) that secure the battery to the computer base.

Schritt 8

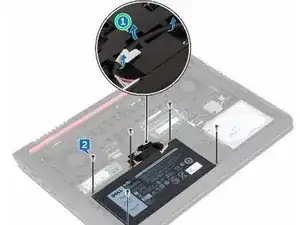

gZSxkZPshbyy5beh

Route the battery cable through the routing guides on the computer base.
