Dell Inspiron 15 5577 Gaming Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

2 - 9 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Battery.

Werkzeuge

Phillips #0 Screwdriver

Ersatzteile

Dell Inspiron 15 357F9 Battery

Schritt 1

3nUs1DAhMerB4ujH

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.
Remove the battery cable from the routing guides on the computer base.

Schritt 2

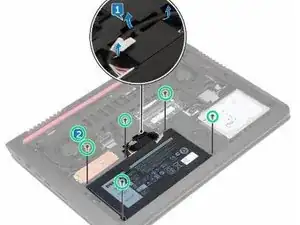

SjfWlIux1vnIfqGU

Remove the five screws (M2x5 T8) that secure the battery to the computer base.

Schritt 3

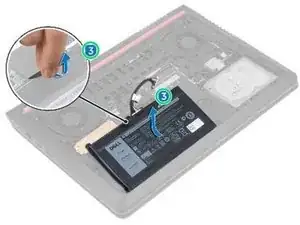

K4aTYopYfxANSlHR

Using the pull tab, lift the battery, along with its cable, off the computer base.

Schritt 4

Turn the computer over, open the display, and press and hold the power button for five seconds to ground the system board.

Schritt 5

bpEZTugN2aikAtKw

Slide the NEW battery in the slot on the computer base.

Schritt 6

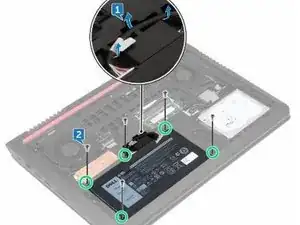

krnl14f1KqwWWyvv

Align the screw holes on the battery with the screw holes on the computer base.

Schritt 7

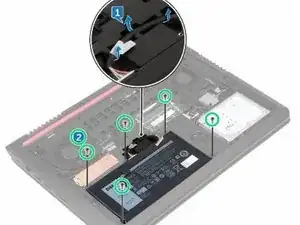

556xYRDV5jG5XFEl

Replace the five screws (M2x5 T8) that secure the battery to the computer base.

Schritt 8

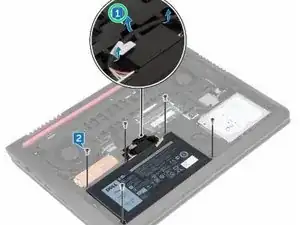

H4ivHpvrSWa5NSmW

Route the battery cable through the routing guides on the computer base.
