Dell Inspiron 15 5577 Gaming Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 1
Dell Inspiron 15 5577 Gaming Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

4 - 10 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. 1QYsRPWRFOU5fiNQ

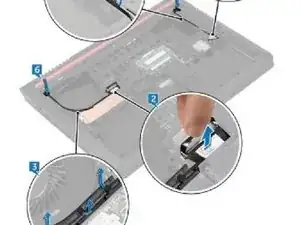

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • Close the display and turn the computer over.

    • Using the pull tab, disconnect the display cable from the system board.

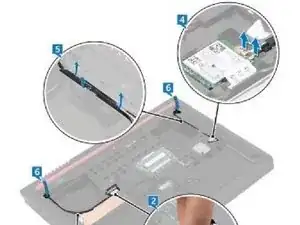

  2. 3v2JvFy2Sjq6tXfl

    • Note the display-cable routing and remove the cable from the routing guides on the computer base.

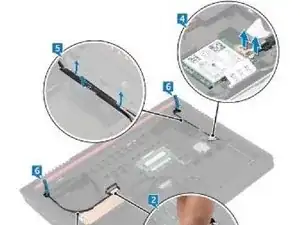

  3. sqoWBvV5QMdJDj2p

    • Disconnect the antenna cables from the wireless card.

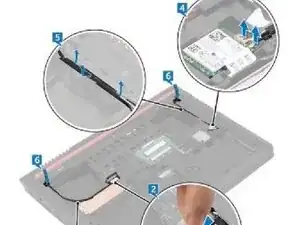

  4. qIPVnydlJ4yAlZdF

    • Note the antenna-cable routing and remove the antenna cables from the routing guides on the computer base.

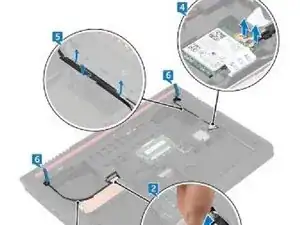

  5. BAIDBHKnVltxPHhr

    • Slide the display cable and antenna cables through the slots on the computer base.

  6. CQI6Hc1NiHXoIYsI

    • Remove the four screws (M2x5) that secure the display assembly to the computer base.

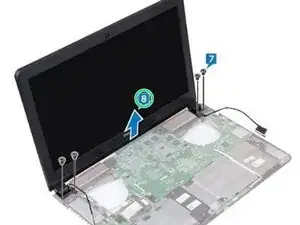

  7. F4DQPTFMhM3FAQmG

    • Lift the display assembly off the computer base.

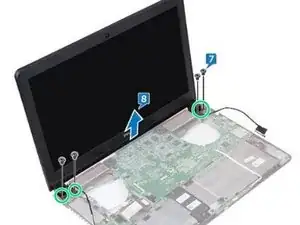

  8. YYPdlvG5REyFTVqt

    • Align the screw holes on the NEW display assembly with the screw holes on the computer base.

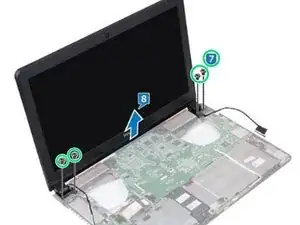

  9. wXBWAVHWF4hCF5FI

    • Replace the four screws (M2x5) that secure the display assembly to the computer base.

  10. f6V4HHnEVCMywZrW

    • Slide the display cable and antenna cables through the slot on the computer base.

  11. JrIeJQIEVI3XRQ2P

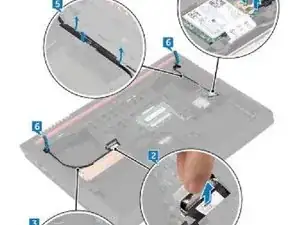

    • Close the display and turn the computer over.

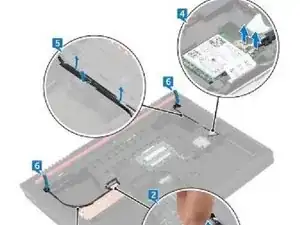

    • Route the display cable and antenna cables through the routing guides on the computer base.

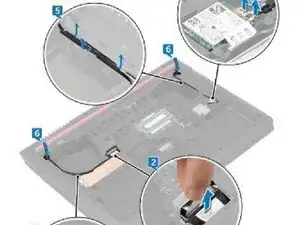

  12. 31JINYqWEQ3ZGmhH

    • Connect the antenna cables to the wireless card.

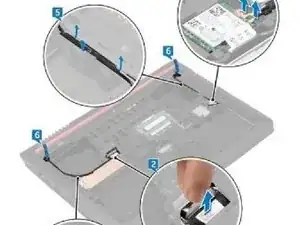

  13. SdrHb1SArptF3UIk

    • Connect the display cable to the system board.

    • Close the display and turn the computer over.
