Dell Inspiron 15 5577 Gaming Fans Replacement

Geschrieben von: Julia Cabral
  • Kommentare: 3
Dell Inspiron 15 5577 Gaming Fans Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

1 Stunde

Einleitung

  1. 66VPMJFpbQGPmHAh

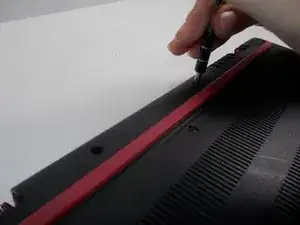

    • Unscrew the base cover.

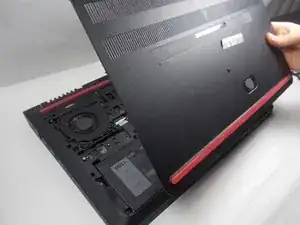

  2. QRjl4tGrtQOSuQdc

    • Remove the base cover.

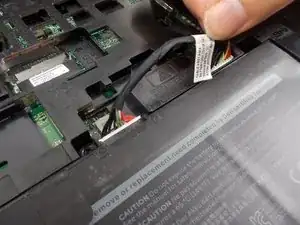

  3. dZvmrB5TvVB2TomN

    • Unplug the battery cable by gently tugging it.

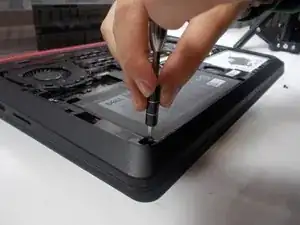

  4. QFPjWcJfVAVNfV4x

    • Loosen the screws that secure the battery in place.

  5. ATYljCDrEH2fXMQo

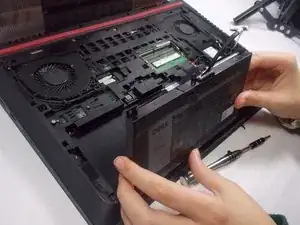

    • Pull the battery out of the laptop.

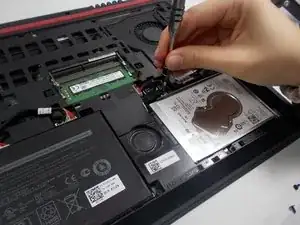

  6. vNmOT1KUOm5giNXl

    • Remove the cable above the hard drive.

  7. QJuFWC2pPdFGGwYC

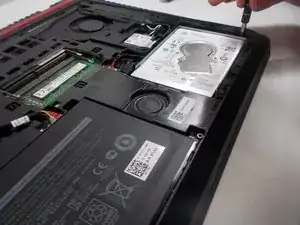

    • Loosen the screws that secure the hard drive.

  8. AwIYTlgMvbK6O6Ve

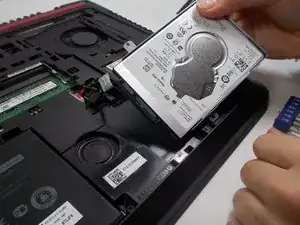

    • Remove the hard drive.

  9. DOo6BWoLJKtXPke1
    DOo6BWoLJKtXPke1

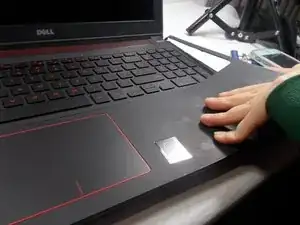

    eBCxusLHNsrGQqOo

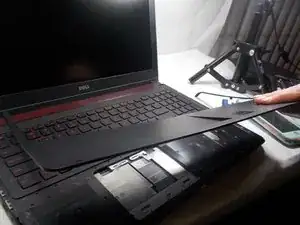

    LfjXsaojDbFfiy1Z

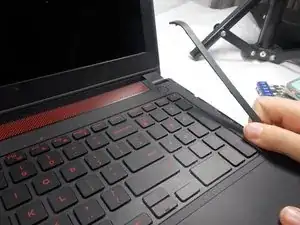

    • Flip the laptop over and open the lid. Remove the palm-rest.

    The breaks the palm rest so it cannot be re-attached. It looks like its an avoidable step according to videos on youtube.

    Ryan Zhan -

    This step should be removed.

    It cause damage to my laptop and now it’s broken. :/

    Ahmad Safdari -

    I just did this myself and had to superglue the palm rest back together. The correct solution is to pop out the keyboard (mind the ribbon cable) and remove the two screws under it.

    Then the palm rest, speaker grill and power button (ribbon cable again) can all be removed as one piece.

    fortunecaspian2 -

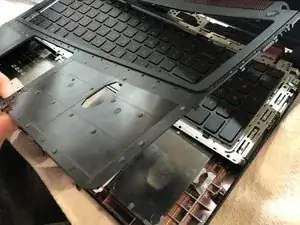

  10. l6anRFERLkmruZ5C

    • Carefully unsecure the rest of the shell on the base of the computer.

  11. 4jGcWvuqUgGHUdwA

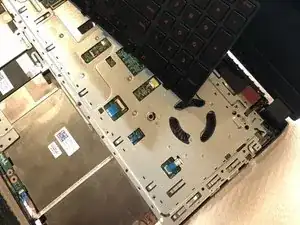

    • Remove the keyboard.

  12. mjLZYC1fhdqXcMLZ

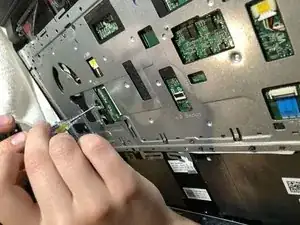

    • Loosen the screws securing the metal plate and contents of the base.

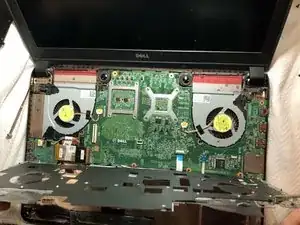

  13. HJ4wobH6jDQQKWTq

    • Remove the plate.

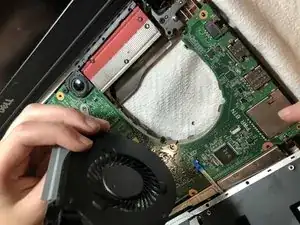

  14. 3SeIbElDgTpx3CST

    • Unscrew and remove the first fan from the base of the laptop.

  15. 1cWUpgHRpmFTJlrH

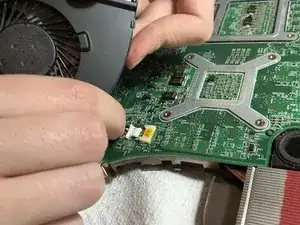

    • Remove the fan's cable from the board.

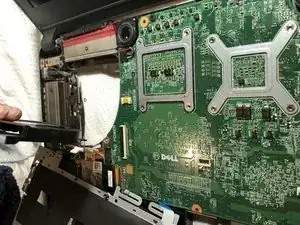

  16. ANcdYUjd5SiZJRxY

    • Repeat steps 14 and 15 for the remaining fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
