Dell Inspiron 15 5577 Gaming Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15 5577 Gaming Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

6 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. kWXkL3WcG3LGoPQk

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

    • Using the pull-tab, disconnect the hard-drive cable from the system board.

  2. GZCnhgrG45fyGyMl

    • Remove the four screws (M2x5) that secure the hard-drive assembly to the computer base.

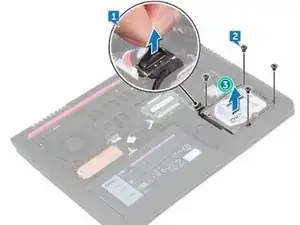

  3. 2oRZNGoAe5jNQ4AZ

    • Lift the hard-drive assembly, along with its cable, off the computer base.

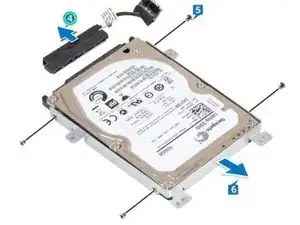

  4. GoOgpQxXggvMTsdi

    • Disconnect the interposer from the hard-drive assembly.

  5. XMmARTsHUI3LnpmP

    • Remove the four screws (M3x3) that secure the hard-drive bracket to the hard drive.

  6. LRrHQbtQrZRQDUmo

    • Remove the hard-drive bracket off the hard drive.

  7. VOHaQwtYoegYRSL6

    • Align the screw holes on the hard-drive bracket with the screw holes on the NEW hard drive.

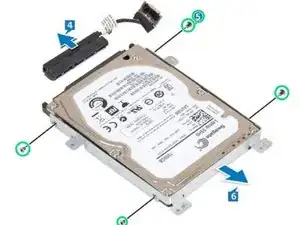

  8. kgnmP5HAscMYxYeE

    • Replace the four screws (M3x3) that secure the hard-drive bracket to the hard drive.

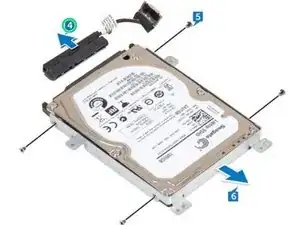

  9. NULuv6SbfdDoMEkJ

    • Connect the interposer to the hard-drive assembly.

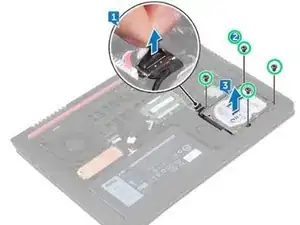

  10. koL4WUBYJAlCbgxa

    • Align the screw holes on the hard-drive assembly with the screw holes on the computer base.

  11. hGPiIApZwWjyAfvQ

    • Replace the four screws (M2x5) that secure the hard-drive assembly to the computer base.

  12. AikOgqgANnPubZjy

    • Connect the hard-drive cable to the connector on the system board.
