Dell Inspiron 15 5578 2-in-1 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

7 - 10 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Battery.

  1. QLuufgoHDpQINLU4

  2. IDhOXcA5AAMACrdY

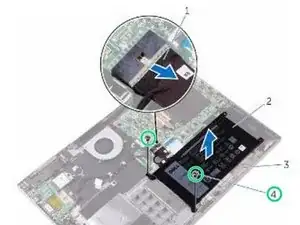

    • Remove the screws that secure the battery to the palm rest and keyboard assembly.

  3. DUQeCRbpnQALsVRs

    • Lift the battery along with its cable off the palm rest and keyboard assembly.

  4. aKYSeLtnNiVLVjkF

    • Press and hold the power button for 5 seconds to ground the system board.

    • Align the screw holes on the NEW battery with the screw holes on the palm rest and keyboard assembly.

  5. JAWNMkdNgL6Yk1KR

    • Replace the screws that secure the battery to the palm rest and keyboard assembly.

  6. FQ1PAm3Z4hoWrGj5

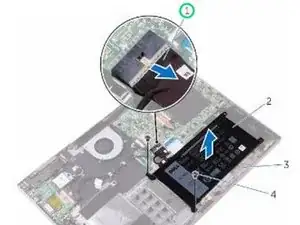

    • Connect the battery cable to the system board.
