Dell Inspiron 15 5578 2-in-1 Memory Module Replacement

Geschrieben von: Terrence15

Kommentare: 0

Dell Inspiron 15 5578 2-in-1 Memory Module Replacement

Schwierigkeitsgrad

Very easy

Schritte

6

Zeitaufwand

2 - 5 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Module.

Schritt 1

UregElCLgswJsAbR

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.
Lift the Mylar from to access the memory module.

Schritt 2

MQDZmTMplxrsjvS3

MQDZmTMplxrsjvS3

lg4eAJKJZEqeJGGs

U2EyD6KguF4Vmujs

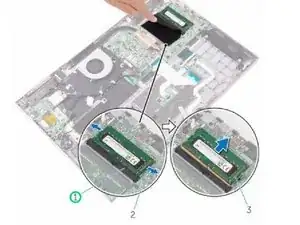

Use your fingertips to carefully spread apart the securing-clips on each end of the memory-module slot until the memory module pops up.

Schritt 3

2JDXYnLrWlGbpUeC

2JDXYnLrWlGbpUeC

rWodMiUgIiBjrQVR

Remove the memory module from the memory-module slot.

Schritt 4

hWBLfUakTEUAuCNr

hWBLfUakTEUAuCNr

SnrqIxnqgAYnyvSc

Lift the Mylar to access the memory-module slot.

Schritt 5

3XonAQYtKXTXrCry

3XonAQYtKXTXrCry

iDMHLXJJBhlnGddR

TgNqEELpBZcnmqvG

Align the notch on the memory module with the tab on the memory-module slot.

Schritt 6

JKXf4WBIXoZDG4WO

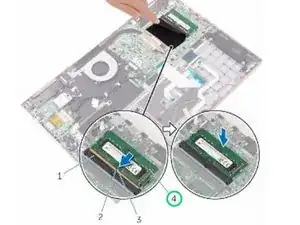

Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place.
NOTE: If you do not hear the click, remove the memory module and reinstall it.
