Dell Inspiron 15 5579 2-in-1 Memory Modules Replacement

Geschrieben von: Terrence15

Kommentare: 0

Dell Inspiron 15 5579 2-in-1 Memory Modules Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

2 - 5 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

Schritt 1

BYjKy4wcXvWQ2qjU

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.
Lift the Mylar from to access the memory module.

Schritt 2

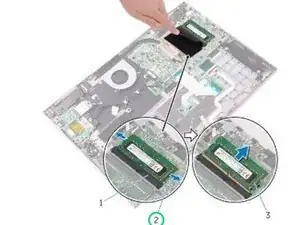

p3RpPO4I5OTGPb1A

Use your fingertips to carefully spread apart the securing-clips on each end of the memory-module slot until the memory module pops up.

Schritt 3

IQELCG3JHCPb2OjN

Remove the memory module from the memory-module slot.

Schritt 4

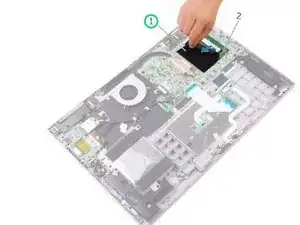

IGWqHiHksKR5UAGm

Lift the Mylar to access the memory-module slot.

Schritt 5

ZvsaGGJG5LRvn5MJ

Align the notch on the memory module with the tab on the memory-module slot.
