Dell Inspiron 15 5584 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

23

Zeitaufwand

20 - 25 Minuten

Einleitung

Use this guide to replace the motherboard within your Dell Inspiron 15 5584 laptop.

The motherboard is a piece of hardware that acts as a "hub" for all the other components. A motherboard is a circuit board that connects all other components to the processor, distributes electricity from the battery, and contains connectors for device storage. Furthermore, the motherboard allows for external devices such as keyboards, flash drives, mice, etc. A faulty motherboard can cause the computer to become nonfunctional or unresponsive.

Before tampering with the device, ensure the battery is drained and the device is shut off. Furthermore, exercise caution when dealing with the motherboard; it is fragile and easy to break.

  1. oPOnIKUeypnxsimi

    • Make sure to turn off and unplug your laptop before starting.

    • Turn over the laptop so that the bottom is facing upwards, and the Inspiron logo is upside-down.

  2. g61NnV56Xi3Ilmeu
    g61NnV56Xi3Ilmeu
    kVDPCFqDOPefTDvL
    QCi5dDrAmYTXtnnH

    • Remove the seven 7 mm screws from the bottom using a Phillips #0 screwdriver.

    • Loosen the two captive back corner screws using a Phillips #0 screwdriver.

    • The two corner screws are not removable. A clicking sounds indicates that the screw is fully loosened.

  3. bupImkwfq6wXFZW5
    bupImkwfq6wXFZW5
    MZ4bG4Xqm65cDuKN

    • Slide an iFixit opening tool underneath the right side USB port and the keyboard.

    • Gently trace the iFixit opening tool along the entire outer rim of the laptop, carefully applying an upwards pressure.

    • Be careful not to force open the plate or push too much off without loosening the other sides. This can cause the bottom cover to crack.

  4. BDbtQKm1PpcFMjwT
    BDbtQKm1PpcFMjwT
    LdW2RPYV6dTtETSM

    • Gently pry off the bottom cover from the laptop.

    • Use the iFixit opening tool to loosen any spots you may have missed from Step 3.

  5. URmUC6rTbkIqvkHm
    URmUC6rTbkIqvkHm
    GrBnScvewWLojZEn

    • Remove the four 3.5 mm screws holding the battery down with a JIS #0 screwdriver.

  6. pp2BxyGd14HSJHrI
    pp2BxyGd14HSJHrI
    mJ5nSuiXR66MiSoW
    kiUKI1SQEeIbxKBV

    • Detach the motherboard connector tab from the top left of the battery.

    • Remove the battery from the device.

    • Be sure to carefully wiggle the connector out from the battery socket. Ripping it out too forcefully could damage the socket.

  7. gAtVAHBnIhDZtGHr
    gAtVAHBnIhDZtGHr
    6LC3iaAeaKh5Ps2Q
    cXbPskH1ptde2vUa

    • Lift up the motherboard ribbon latch using a pair of tweezers.

    • Gently lift the ribbon cable from the motherboard connector socket.

    • Pulling out the ribbon cable too quickly can damage the connector.

  8. S4B3sMIEuMic4xh2
    S4B3sMIEuMic4xh2
    yopQe4NnQkeUQdAQ

    • Remove the four 3 mm hard drive cover screws using a JIS #0 screwdriver.

  9. sGwMdHlWuqBl6EAr
    sGwMdHlWuqBl6EAr
    WLwtQZ2jk43IuoDd

    • Remove the hard drive cover plate from the device.

    • Unplug the connector cable from the hard drive.

    • Remove the hard drive from the device and place it safely to the side.

  10. TU3hFspijrugYAFw
    TU3hFspijrugYAFw
    XEC6gNBuIcbTNrEF

    • Remove the four 6 mm screws holding down the screen hinge in the upper right corner using a JIS #0 screwdriver.

  11. SAWIbvW1eeX2QnHT
    SAWIbvW1eeX2QnHT
    uNMDpWWCN4rUwRLS

    • Grasp the screen hinge and lift it up.

  12. pcJG2sMcKPiaIcpZ
    pcJG2sMcKPiaIcpZ
    HvK3kbjaSFwHlAlj
    By6kFqSZVhKHOX5u

    • Lift up the sticker covering the DC jack connector using tweezers.

    • Using tweezers, detach the motherboard connector and lift the jack out of place.

    • Remove the DC jack from the laptop.

  13. Bgpn5FQw2OYuxc2h
    Bgpn5FQw2OYuxc2h
    yOmqYlTWotW3kaSg
    1ZG1iMgogpekAENI

    • Loosen the four captive 3.5 mm screws securing the heat sink to the motherboard using a Phillips #0 screwdriver.

    • Remove the CPU plate cover from the motherboard and safely place it off to the side.

  14. LBJoALAgcmovFSan
    LBJoALAgcmovFSan
    PPYc1nDLMQPBAYTF
    Lj6dMWgPMPEVLBYH

    • Remove the two 3.5 mm screws from the fan with a JIS #0 screwdriver.

    • Detach the fan connector from the motherboard using a pair of tweezers.

  15. LTTCdpB5LTLeveKP
    LTTCdpB5LTLeveKP
    MbemBIGxBROwujLm

    • Gently lift the fan from the device and de-thread the LCD display cable.

    • Remove the fan from the device.

  16. 1mqFUgLvBLev1DQ5
    1mqFUgLvBLev1DQ5
    yN5fSJFqQmgGYwBZ
    jG4Cxbh4eXeQQVio

    • Remove the single 3 mm screw that holds down the Wi-Fi card using a Phillips #0 screwdriver.

    • Remove the Wi-Fi card from the motherboard.

  17. DnpNUpSOxTXMANh4
    DnpNUpSOxTXMANh4
    VcUKOXNBwTXBEfX1

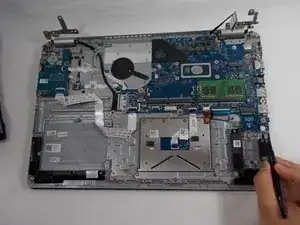

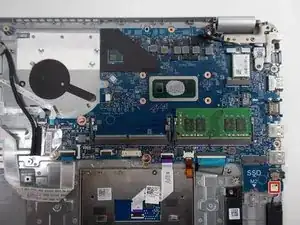

    • Using tweezers, detach the connector found near the SSD.

    • This connector is similar to the DC jack connector and fan connector.

  18. jGI2eWPPqacNxeJJ
    jGI2eWPPqacNxeJJ
    2xIjRTd1BLFC5Pqp
    hqo1KI3OqqBxvZxM

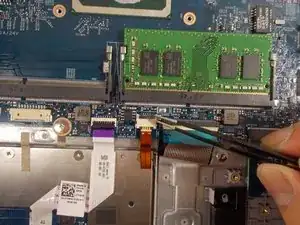

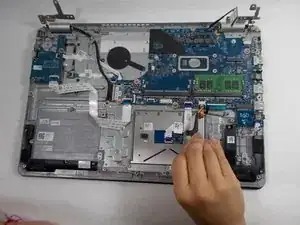

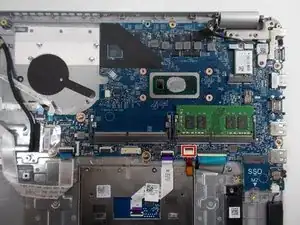

    • Push the holding tab up on the side closest to the motherboard.

    • Lift the ribbon cable from the motherboard connector port.

    • All ribbon connectors are fragile; pull them out slowly.

  19. FJOfEYfPQO1yLST3
    FJOfEYfPQO1yLST3
    KCdgbvdEcycYfYMq
    5t4WAiJbMR2xh4jt

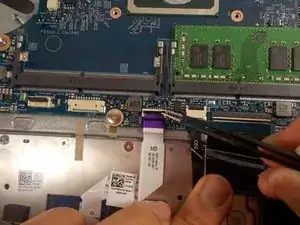

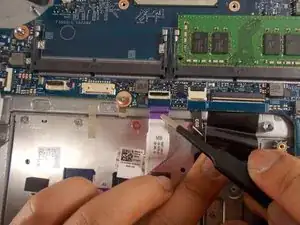

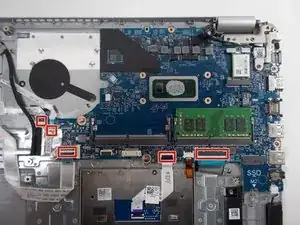

    • Detach the five ribbon cables from their connectors on the motherboard using a pair of tweezers.

  20. dIJoVxuLtHnXyYPe
    dIJoVxuLtHnXyYPe
    32sjRKpNxUFYJqwj

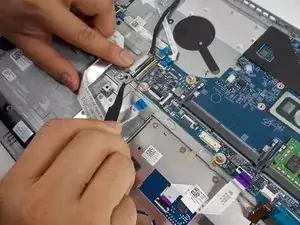

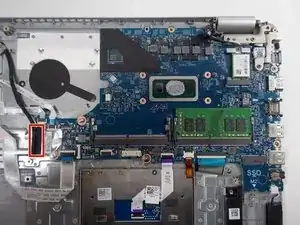

    • Use tweezers to peel off the sticky label that is placed over the display cable port.

  21. 4BIAicOkuYFgYVbk
    4BIAicOkuYFgYVbk
    YNBKdVLKFbJtrvns
    gB6rEjUYGZ6bKJOQ

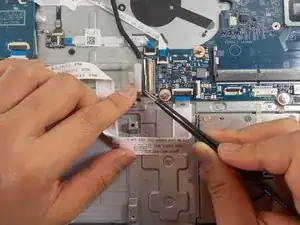

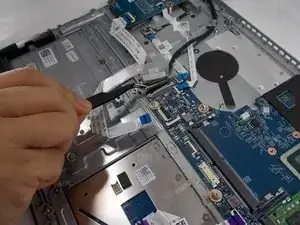

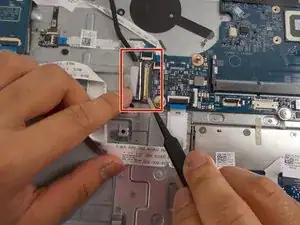

    • Grasp the connector latch with tweezers and lift it up.

    • Disconnect the display cable from its connector using a pair of tweezers.

  22. ZvanjB1d2i2SQbqq
    ZvanjB1d2i2SQbqq
    qaYItRWenHVNGYO6
    U2CaGaJgUL1KLfrk

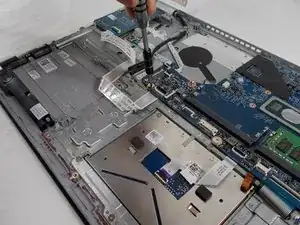

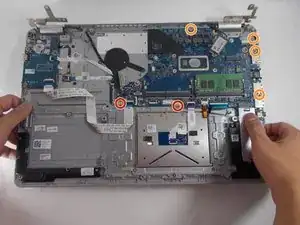

    • Remove the two 2.5 mm screws with a JIS #0 screwdriver.

    • Remove the four 3 mm screws with a JIS #0 screwdriver.

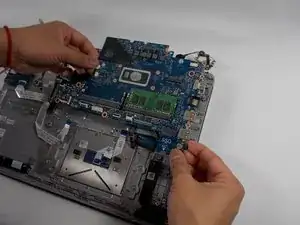

  23. niQHmRTKdZVaDPhb

    • Lift up the motherboard and remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
