Dell Inspiron 15 7560 Battery Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron 15 7560 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

7 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Battery.

  1. JAvbM3VGxFTTVmKK

  2. 2hAFGstAYTWBLtLp

    • Peel the tape that secures the hard-drive cable to the battery.

  3. YjDVBu1gtMmriimk

    • Open the latch and disconnect the hard-drive cable from the system board.

  4. QgYX1ClGT231hVE5

    • Remove the four screws (M2x3) that secure the battery to the palm rest and keyboard assembly.

  5. vfWLynILl2cV5HGI

    • Lift the battery off the palm rest and keyboard assembly.

    • Press and hold the power button for five seconds to ground the system board.

  7. SfIhQLLF1ZdxMGTu

    • Align the screw holes on the NEW battery with the screw holes on the palm rest and keyboard assembly.

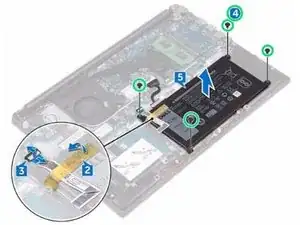

  8. rr3xcGLDqlgBsbPK

    • Replace the four screws (M2x3) that secure the battery to the palm rest and keyboard assembly.

  9. smXXjDM4QRfZqwwb

    • Slide the hard-drive cable into the connector on the system board and close the latch to secure the cable.

  10. eoUSW6CDRasbWRG5

    • Adhere the tape that secures the hard-drive cable to the battery.

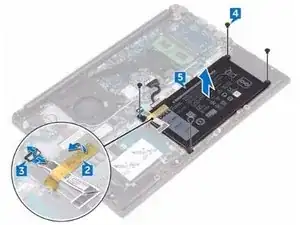

  11. HBI5D46DfmDOMhec

    • Connect the battery cable to the system board.
