Dell Inspiron 15 7579 2-in-1 Battery Replacement

Geschrieben von: Terrence15

Kommentare: 0

Dell Inspiron 15 7579 2-in-1 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

8 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Battery.

Werkzeuge

Phillips #0 Screwdriver

Schritt 1

XZycmmXG6sqxUCdb

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

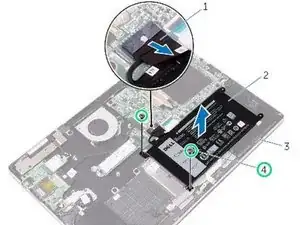

Disconnect the battery cable from the system board.

Schritt 2

eEct4LeYfPPBBlVx

Remove the screws that secure the battery to the palm-rest assembly.

Schritt 3

hiUTNFQE1q11DwQf

Lift the battery along with the battery cable off the palm-rest assembly.

Schritt 4

Press and hold the power button for 5 seconds to ground the system board.

Schritt 5

35PIxV2CgljYub4V

Align the screw holes on the NEW battery with the screw holes on the palm-rest assembly.

Schritt 6

3n6xFvkZZeSUxsMK

Replace the screws that secure the battery to the palm-rest assembly.

Schritt 7

y53icAGR1BRH62ML

Connect the battery cable to the system board.
