Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. BhCQnMQLsZfCcaMm

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • Turn the computer over and open the display to 180-degree angle.

    • CAUTION: Place the computer on a soft and clean surface to avoid scratching the display.

  2. hcRPPADnkqZDJFOJ

    • Place the computer on a flat surface with the display facing down.

  3. kBfcydh2UQRsCaaG

    • Remove the screws that secure the display assembly to the palm-rest assembly.

  4. wHuLCE54wgRbdHY3

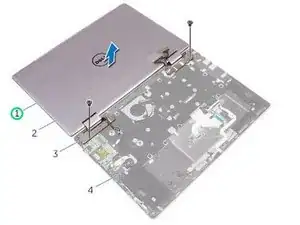

    • Lift the display assembly off the palm-rest assembly.

  5. WxqEO1sIATK45ZED

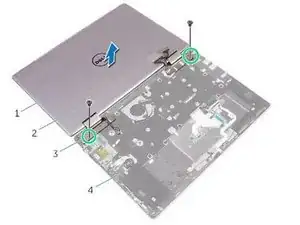

    • With the display facing down, align the screw holes on the display hinges with the screw holes on the palm-rest assembly.

  6. WQxD421mMkfymSCp

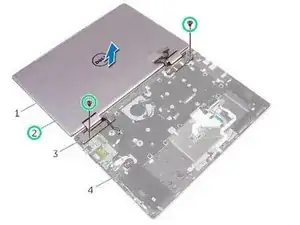

    • Replace the screws that secure the NEW display assembly to the palm-rest assembly.

    • Turn the computer over and close the display.
