Dell Inspiron 15 7579 2-in-1 Memory Module Replacement

Geschrieben von: Terrence15

Kommentare: 0

Dell Inspiron 15 7579 2-in-1 Memory Module Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

1 - 3 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Module.

Schritt 1

CV4CdCZX6lGPEEeP

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.
Lift the Mylar to access the memory module.

Schritt 2

Kx1HbDQyofuPGZrX

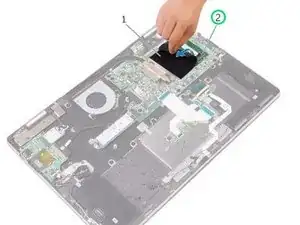

Use your fingertips to carefully spread apart the securing-clips on each end of the memory-module slot until the memory module pops up.

Schritt 3

XpQUIfjTQYktlRu4

XpQUIfjTQYktlRu4

usOJDPTYhYKL4oUZ

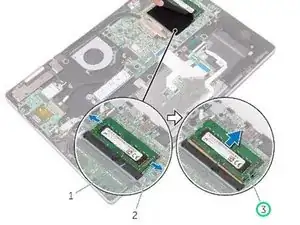

Remove the memory module from the memory-module slot.

Schritt 4

VW4k2NvAF3vppW5h

VW4k2NvAF3vppW5h

uvmBep6F2uJm61h2

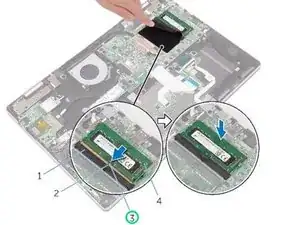

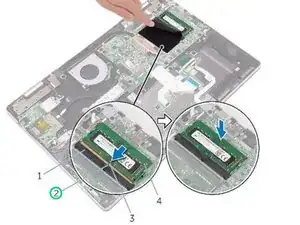

Align the notch on the NEW memory module with the tab on the memory-module slot.

Schritt 5

o5YmiHZ5hipHw1oJ

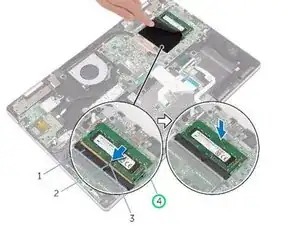

Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place.
NOTE: If you do not hear the click, remove the memory module and reinstall it.
