Dell Inspiron 15 Gaming 7567 Battery Replacement

Geschrieben von: Terrence15

Kommentare: 2

Dell Inspiron 15 Gaming 7567 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

2 - 7 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Battery.

Werkzeuge

Phillips #0 Screwdriver

Schritt 1

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

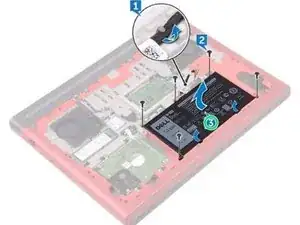

Remove the battery cable from the routing guide on the computer base.

Schritt 2

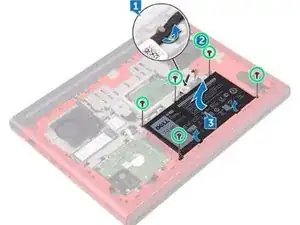

Remove the five screws (M2x4 T8) that secure the battery to the computer base.

Schritt 3

Lift the battery at an angle off the computer base.

Schritt 4

Turn the computer over, open the display, and press and hold the power button for five seconds to ground the system board.

I do not see the step of disconnecting the battery cable from the battery and replacement of the battery itself.

keith isaac -

Schritt 5

Slide the battery in the slot on the computer base and align the screw holes on the battery with the screw holes on the computer base.

Schritt 6

Replace the five screws (M2x4 T8) that secure the battery to the computer base.

Schritt 7

Route the battery cable through the routing guides on the computer base.

Ein Kommentar

Dell UK do not sell a genuine battery replacement (part 71JF4). Where can a battery be purchased that will work, without running into the issue stated on the Dell forum that non-Dell batteries are not recognised and will not charge? Replacement batteries shown on Amazon and eBay provide no certainty that they are genuine or would otherwise work. Thanks!

Saskwoch -
